Product Description

Super Strength Mounting Magnet w/ Internal Threaded Bushing Ø70 mm, Sintered Neodymium Internal Thread Magnet, Strong Internal Thread Magnet, Pot Magnet w/ Female Thread, China Neodymium Pot Magnets

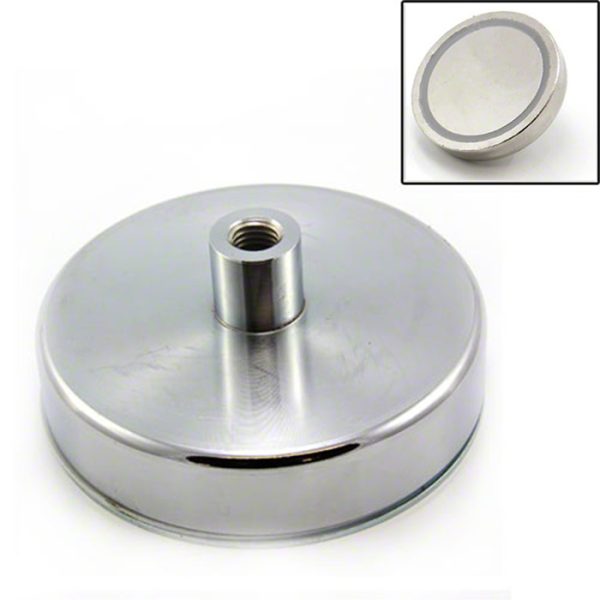

Super Strength Mounting Magnet w/ Internal Threaded bushing Ø70 mm X 34.2 mm Part No.HS-ND70 by HSMAG Features :

Material: Housing steel and Magnetic core sintered neodymium magnet with internal thread .
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with Internal Threaded Stud. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=70 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

NdFeB Heavy Duty Pot Magnet Super Strength Mounting Magnet
Deep Pot Magnet is one another name of internal threaded mounting. These pot magnets are comes in red magnets and comes in regular Neodymium magnets range also. By using screws and bolts with M3, M4, M5 and M8, these pot magnets can easily be attach to any item. These magnets also exeunt with Alnico, NdFeB and SmcO formats. Most of these come in coating, with chrome, Nickel, Zinc or red paint with mild steel casings.
Even at high temperature of +220 Degrees C, these alnico pot magnets provide same efficiency in energy. During demagnetization of NdFeB pot magnets, it works swiftly at temperature up to +80 C.
We at HSMAG Magnets also offer a range of SmCo extreme pot magnets, which produce maximum amount of energy in any extreme conditions. These magnets are idle during temperature corrosion resistant applications also. Even in, dampen conditions of Neodymium magnets and samarium cobalt, as well it will not corrode.
In marine environment, it maintains a steady temperature, which allows SmCo magnets to perform without corrosion. With Ferric stainless steel (SS 430) being upgraded with pot magnets steel casing and the steelwork makes it less corrosion free.
