Material: Neodymium (NdFeB ) and Steel
Part No.: HS-NC6
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: External Threaded Stud
Pot Magnet Size:
Pot Total Diameter (D): 6 mm
Pot Height (h): 4.7 mm
Total Height (H): 10.5 mm
Thread M: M3
Tolerance: ±0.1 mm
Weight: 2 g
Holding Force: 0.5 kg
Maximum Operation Temperature: 80 °C
Delivery Time: 7-15 days
Made in China
Small Pot Magnet with External Thread Ø6 mm
Product Description
Small Pot Magnet with External Thread Ø6 mm, Super Neodymium External Thread Mounting Magnet, Small Screw External Thread Neodymium Pot Magnet, China Clamping Magnets
Small Pot Magnet with External Thread Ø6 mm X 10.5 mm Part No.HS-NC6 by HSMAG Features :
Material: Housing steel and Magnetic core sintered neodymium magnet with external thread .
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with External Threaded Stud. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=6 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

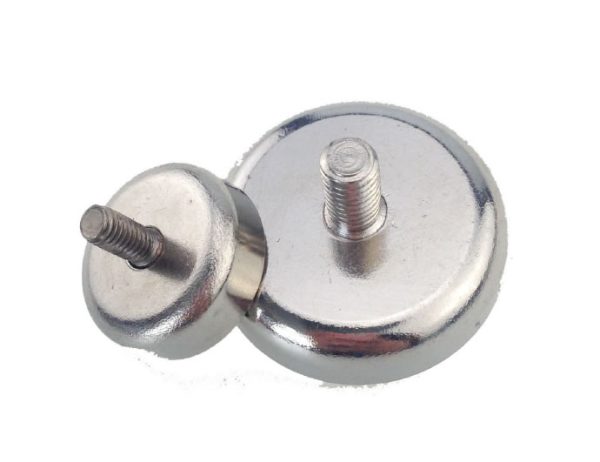

Screw Thread Neo Pot Magnet – External Threaded Stud
A HSMAG magnets is sole provider of pot magnets that are internally threaded stud popularly known as External Threaded Stud. These magnets have a very large force, which can clamp down the ferromagnetic material because of its Ni or Zinc plated mild steel. Thus, allow a magnetic circuit with improved material, which can achieved with minimal sizes.
Pot Magnets are super strong, compact and durable which come in a wide range of dimensions.
Material: Neodymium (29-32.5%)-iron (63.95-68.65%)-boron (1.1-1.2%).
Max Working Temp.: Much depend on the material of the magnet,our ah grade material can reach 230 degree centigrade.
Shape: Disc, cylinder,ring, rectangle, strip and other non-standard shapes are available.
Size: Custom made;
Surface Treating: Nickel (ni-cu-ni), black nickel, zinc(zn), gold(au), silver(ag), black epoxy etc.
Sintered neodymium (ndfeb) magnets are the most advanced commercialized permanent magnet materials today. With far better permanent magnetic performance compared with traditional magnets,sintered neodymium magnets are the key functional materials for modern industry.
We offer a suitable range of Pot Magnets that are compact units consisting of powerful alnico/rare earth magnets. The magnets are assembled in mild steel pots with the help of aluminum insulating and retaining rings. Our diverse range of pot magnets serve innumerable applications such as clamping, holding, moving of small components through short distance etc. However the size and shape of the magnet varies according to its application.
Part No. | Dimension (mm) | Weight | Holding Force | |||
D | M | h | H | (g) | (Kg) | |
HS-NC6 | 6 | 3 | 4.7 | 10.5 | 2 | 0.5 |
HS-NC8 | 8 | 3 | 4.7 | 11.5 | 3 | 1 |
HS-NC10 | 10 | 3 | 5 | 14.3 | 4 | 1.5 |
HS-NC12 | 12 | 3 | 5 | 14 | 5 | 2 |
HS-NC14 | 14 | 4 | 4.5 | 14 | 7 | 5 |
HS-NC16 | 16 | 4 | 5.2 | 14 | 9 | 8 |
HS-NC16-1 | 16 | 4 | 5.3 | 14 | 9 | 8 |
HS-NC18 | 18 | 4 | 6 | 14 | 12 | 10 |
HS-NC20 | 20 | 4 | 7.2 | 16 | 16 | 12 |
HS-NC20-1 | 20.2 | 4 | 6 | 14.8 | 15 | 12 |
HS-NC22 | 22 | 4 | 6.9 | 16.2 | 20 | 18 |
HS-NC25 | 25 | 5 | 7.7 | 17 | 26 | 22 |
HS-NC25-1 | 25 | 5 | 6.9 | 16.2 | 27 | 22 |
HS-NC28 | 28 | 5 | 6.4 | 16.8 | 31 | 26 |
HS-NC30 | 30 | 5 | 6.4 | 16.8 | 35 | 29 |
HS-NC32 | 32 | 6 | 7.8 | 18 | 43 | 34 |
HS-NC32-1 | 32 | 6 | 6.8 | 17.1 | 43 | 34 |
HS-NC34 | 34 | 6 | 7.3 | 17.7 | 50 | 37 |
HS-NC36 | 36 | 6 | 7.6 | 17.6 | 54 | 41 |
HS-NC36-1 | 36 | 6 | 6.9 | 16.7 | 55 | 41 |
HS-NC38 | 38 | 6 | 7.4 | 17.2 | 65 | 46 |
HS-NC40 | 40 | 6 | 7.9 | 17.7 | 75 | 51 |
HS-NC42 | 42 | 6 | 8.8 | 18.7 | 83 | 68 |
HS-NC42-1 | 42 | 6 | 7.9 | 17.7 | 83 | 68 |
HS-NC45 | 45 | 8 | 8.7 | 21.9 | 103 | 75 |
HS-NC48 | 48 | 8 | 10.8 | 24 | 130 | 81 |
HS-NC48-1 | 48 | 8 | 9.6 | 22.8 | 126 | 81 |
HS-NC50 | 50 | 8 | 10.7 | 25.6 | 151 | 91 |
HS-NC55 | 55 | 8 | 12 | 29.2 | 209 | 102 |
HS-NC60 | 60 | 8 | 15 | 31.5 | 256 | 120 |
HS-NC60-1 | 60 | 8 | 13.9 | 31.5 | 282 | 120 |
HS-NC65 | 65 | 10 | 14.9 | 33 | 362 | 137 |
HS-NC70 | 70 | 10 | 16.9 | 34 | 467 | 153 |
HS-NC75 | 75 | 10 | 17.8 | 35 | 510 | 178 |
HS-NC75-1 | 75 | 10 | 17.9 | 35 | 564 | 178 |
HS-NC80 | 80 | 10 | 19 | 36.2 | 681 | 200 |
External threaded Stud/Boss pot magnets have coating with white paint casing and this why these magnets are the inoperative choice for point for sale magnets, windows dressing magnets, ceiling magnets and door magnets.
