Product Description

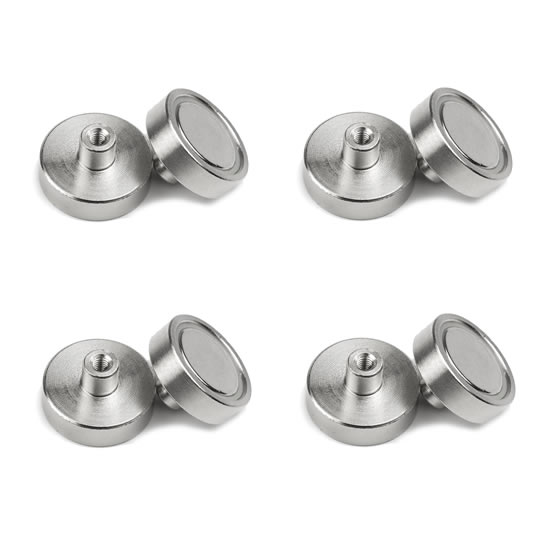

Sintered NdFeB Threaded Bushing Pot Magnet Ø28 mm, Female Threaded Stud Pot NdFeB Magnet, Mounting Magnet with Threaded Bushing, Internal Screw Thread Cup Magnet China Manufacturer

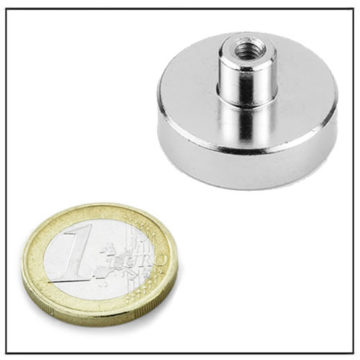

Sintered NdFeB Threaded Bushing Pot Magnet Ø28 mm X 15.7 mm Part No.HS-ND28 by HSMAG Features :

Material: Housing steel and Magnetic core sintered neodymium magnet with internal thread .
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with Internal Threaded Stud. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=25 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

Holding Pot Magnet with Internal Threaded
A HSMAG magnets is sole provider of pot magnets that are internally threaded stud popularly known as Internal Threaded Stud. These magnets have a very large force, which can clamp down the ferromagnetic material because of its Ni or Zinc plated mild steel. Thus, allow a magnetic circuit with improved material, which can achieved with minimal sizes.
Pot Magnets with internal thread stud/Boss mounting have that thick steel backing with female thread section. With help of threads like M4 and M10 screw and a bolt, these magnets have a platform, which can hold the pot magnets with much efficient internal thread with Stud/Boss mounting on the place.

Female Threaded Stud Pot Magnet NdFeB Ø25 mm

NdFeB Pot Magnet with Threaded Stem Ø22 mm

POT MAGNETS MAGNETIC LENSES
Magnetic lenses are characterized by a specific magnetic circuit arrangement, providing thus maximum magnetic force utilization. Their application range includes metalworking plants and/or mechanical engineering plants, in combination with various preparations, tools and devices.

Pot magnets are constructed of powerful magnets encased in plated steel bases. Because of their exceptional economy high holding power and compact designs, these magnetic bases are perfect for a number of applications. Can be used for positioning, holding or handing inspection equipment, indicator gauges, lamps, antennas and more. It is recommended that the contact surfaces of the piece of work should be kept free of contamination enable to guarantee reliable operation.
