Product Description

Sintered Ferrite Countersunk Cup Magnet Ø 63 x 14 mm, Round Base Countersunk Pot Magnet, Holding Magnets, Countersunk Ferrite Shallow Magnets in Steelpot China Supplier

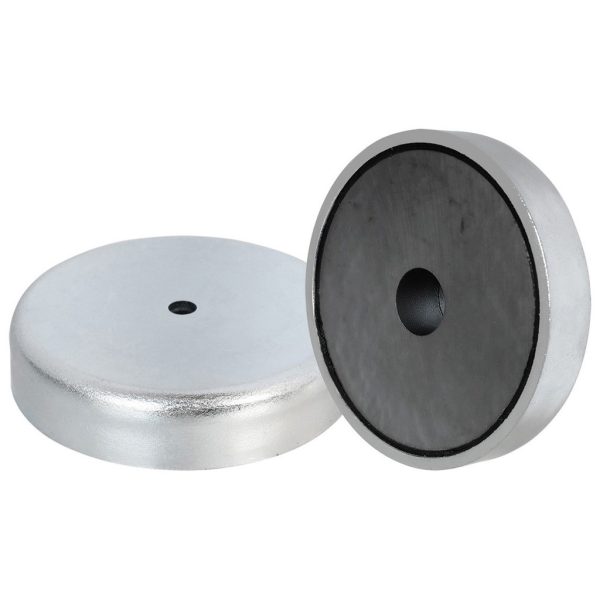

Sintered Ferrite Countersunk Cup Magnet Ø 63 x 14 mm Part No.HS-CO-63 by HSMAG Features :

Material: Housing steel and Magnetic core hard sintered ferrite disc permanent magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=63 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 200°C.

Pot or Cap Magnets substantially increase the holding ability of disc and ring magnets that are fixed permanently and located in the centre of the steel pot or cap. The lower side of the magnet is in direct contact with bottom of the pot and the top side of the magnet is fractionally lower than the top edges of the pot. The outside diameter of the magnet less than the inside diameter of the pot, leaving a 2-4 mm spacing around the magnet which is generally filled with resin. A very strong locking field exists around the perimeter of the pot between the top of the magnet and the pot top edge returning the reverse side field. Alternative mounting options are available as shown in the photos.

Our strong Countersunk Ferrite Pot Magnets could be even stronger! These are our models of ferrite pot magnets. The core is a strong samarium disc built in a steel pot. Not only will the steel pot keep the magnet safe from damages but also the magnetic force is higher! Because of the steel there is only one side that can be attached. The optimal surfaces are steel and iron. If you search for really strong magnets in steel pot we suggest our neodymium magnets.

Special feature: these magnets can not be fixed or mounted using screws. For this reason we suggest to place and glue them in a drilled pilot hole and can be used at a temperature up to 200 °C.
