Part No.: MagPad-7
Specification:
Length = 100 mm
Width = 39 mm
Thickness = 12 mm
Pull Force: 5 kg
Shear Force: 6.5 kg
Hole Centres: 90 mm
Magnet material: Rubber covered ferrite magnets and Galvanized steel
Magnet coating: Nickel (ni-cu-ni) or Zinc (zn)
Max. work temperature: +120℃
Rubber Covered Throuh Hole MagPads MagPad-7
Product Description
MagPad-7 Rubber Covered Throuh Hole MagPads, Magnetic Holding Pad, Vehicle Roof Sign Magnets, Driver Taxi Sign Rubber Coating Magnetic Mounting Pad, Magnetic Pad with 2 Holes, Pot Magnet China Supplier
Rubber Covered Throuh Hole MagPads MagPad-7 by HSMAG Features :
Magnetised with a six-pole striped magnetic field on the magnetic pad
Form: Rubber covered magnets | zinc plated
Material: Ferrite magnets assembled on to a mild steel backing plate with a protective rubber coating over the magnets.
Ferrite Grade Y30BH / Y35 / Y33 …
Housing Galvanized steel
Rubber coated to increase friction and reduce corrosion
Suitable for use with Taxi Signs, Adverting Signs and Driving School signs
Magnetic Mounting Pad with through hole has one large rectangular bar magnet on its base.
This magnet has only one magnetic face, magnetised in the form of a multi-pole magnet.
This is where the magnetic face is magnetised in a striped pattern of alternating north and south poles e.g. north, south, north, south.
The through hole magnetic mounting pad requires multi-pole magnetisation due to the steel back plate preventing the magnetic field from escaping through the top of the magnetic mounting pad. Only one half the magnetic mounting pad needs to be magnetised so that it can attach to a ferromagnetic material. The other side is used to hold the sign with the help of the through holes.
Magnetic holding pads are designed for securing items to receptive surfaces. They are used extensively for securing roof signs to vehicles and signs to steelwork and internal metal structures.
Suitable for a range of wallboard mounting applications. With two 4mm diameter holes to enable easy fixing.
Rubber Covered Magnetic Mounting Pad
The magnetic base that is in contact with the metal surface has a polyurethane coating that is relatively soft to prevent scratching. The back plates of the magnets are zinc coated to prevent corrosion and come with the design options of holes or threaded studs for fixing.
| Part No. | Length mm | Width mm | Thickness mm | Force kg | Shear force kg | Hole Centres mm |
| MagPad-5 | 75 | 39 | 6 | 4 | 2 | 65 |
| MagPad-6 | 75 | 39 | 12 | 5 | 3 | 65 |
| MagPad-7 | 100 | 39 | 12 | 5 | 6.5 | 90 |
| MagPad-8 | 73 | 23 | 8 | 1.5 | 1 | 63 |

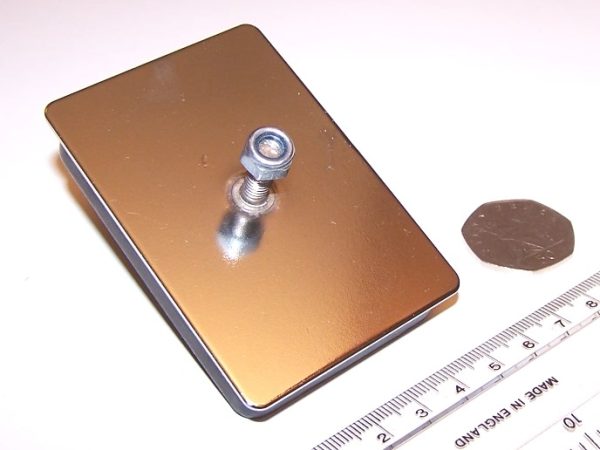

| Part No. | Length mm | Width mm | Thickness mm | Force kg | Shear force kg | Thread MxL |
| MagPad-1 | 79 | 53 | 12 | 9 | 5 | M6x16mm |
| MagPad-2 | 80 | 55 | 15 | 9.5 | 5.5 | M6x15mm |
| MagPad-3 | 127 | 102 | 12 | 25 | 22 | M6x16mm |
| MagPad-4 | 104 | 53 | 8 | 8 | 7 | M5/M6x32mm |
Typical uses: include lighting systems, magnetic brackets, car roof signs (e.g. taxi signs), antenna clamp systems, lighting fixtures, security gates, vehicle tracking units, temporary signage, adverting signs, driving school signs, attaching to boards and pictures to metal partitions, door clamps, etc.
