Magnetisation Grade: N35
Magnet Material: Neodymium-Iron-Boron (NdFeB, Neo)
Magnet ID: RMS-ET-43-N35
Plating / Coating: Rubber or Plastic Jacket
Shape: Magnetic systems with External Thread Magnetic systems
Magnet Size:
Total weight 32 g
Total height H 21 mm
Total diameter D 43 mm
Pot height h1 6 mm
Thread standard m M6
Thread length h6 15 mm
Tolerance: ±0.05 mm
Magnetisation Direction: Axial / Diametrical Residual Magnetic Flux Density (Br): 1170-1220 mT (11.7-12.2 kGs) Energy Density (BH)max: 263-287 KJ/m³ (33-36 MGOe) Coercivity Force (Hcb): ≥ 868 kA/m ( ≥ 10.9 kOe) Intrinsic Coercivity Force (Hcj): ≥ 955 kA/m ( ≥ 12 kOe) Maximum Operation Temperature: 80 °C Delivery Time: 14-35 days

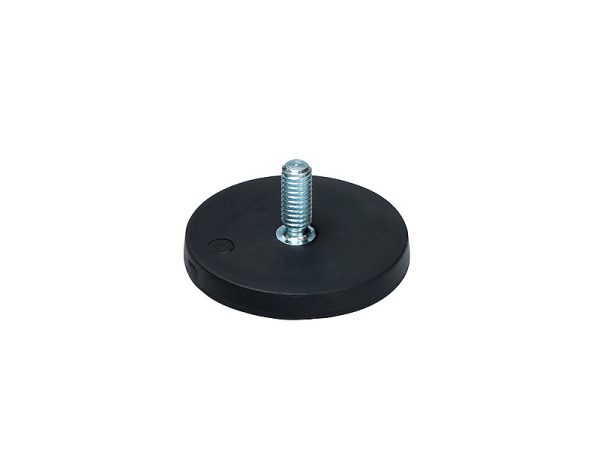

Rubber Covered Pot Magnet w/ External Thread Ø 43mm
Product Description
Rubber Covered Pot Magnet w/ External Thread Ø 43mm, Rubber Coated Neodymium Threaded Stem Magnet, Sintered NdFeB Threaded Magnet, Threaded Stem Cup Magnets China Supplier
Rubber Covered Pot Magnet w/ External Thread Ø 43mm Part No. RMS-ET-43-N35 by HSMAG Features :
Material: Rubber or Plastic Coating, Housing steel and Magnetic core hard sintered neodymium permanent magnet with external screw thread.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=43 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.
Rare Earth Samarium & Neodymium, pots and assemblies can offer up to eleven times the performance of a Ferrite system in a comparable size. Applications tend to be specialized engineering projects where performance and available space are key factors. Maximum operating temperatures are +60°C for the Neodymium and +150°C – +250°C for the Samarium depending on the design configuration.
Pot Magnets (Mounting Magnets) are often used as tools for various activities in workshops and in industry. They can be used for holding workpieces whilst welding, cutting, milling or drilling etc. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life.
| Part No. | Dimension (mm) | Thread | Weight | Holding Force | |||
| D | H | h1 | h6 | m | (g) | (Kg) | |
| RMS-ET-12 | 12 | 15.5 | 7.5 | 8 | M4 | 4.5 | 1.3 |
| RMS-ET-22 | 22 | 12.5 | 6 | 6.5 | M4 | 11 | 5.8 |
| RMS-ET-31 | 31 | 15.5 | 6 | 9.5 | M4 | 25 | 7.3 |
| RMS-ET-43 | 43 | 21 | 6 | 15 | M6 | 32 | 10 |
| RMS-ET-66 | 66 | 23.5 | 8.5 | 15 | M8 | 107 | 25 |
| RMS-ET-88 | 88 | 23.5 | 8.5 | 5.5 | M8 | 193 | 55 |
High quality pot/cup magnet assemblies made with super strong rare earth neodymium magnets and ceramic magnets for Home or Industrial uses.
