Part No.: MagPad-3
Length = 127 mm
Width = 102 mm
Thickness = 12 mm
Pull Force: 25 kg
Shear Force: 22 kg
Thread MxL: M6x16 mm
Magnet material: Rubber covered ferrite magnets and Galvanized steel
Magnet coating: Nickel (ni-cu-ni) or Zinc (zn)
Max. work temperature: +120℃

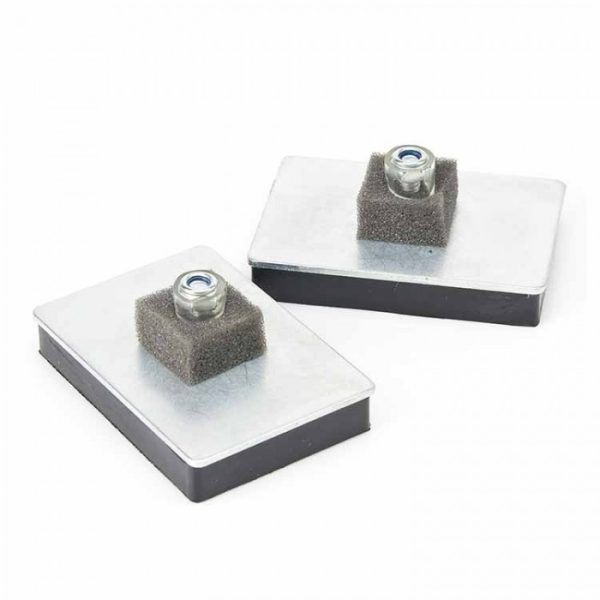

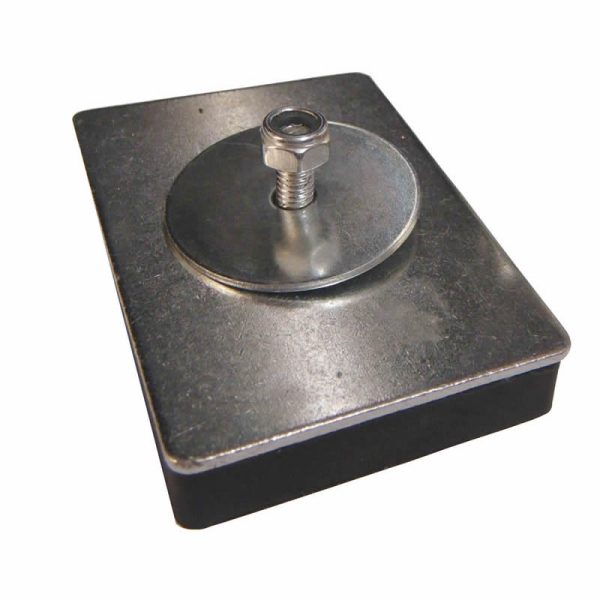

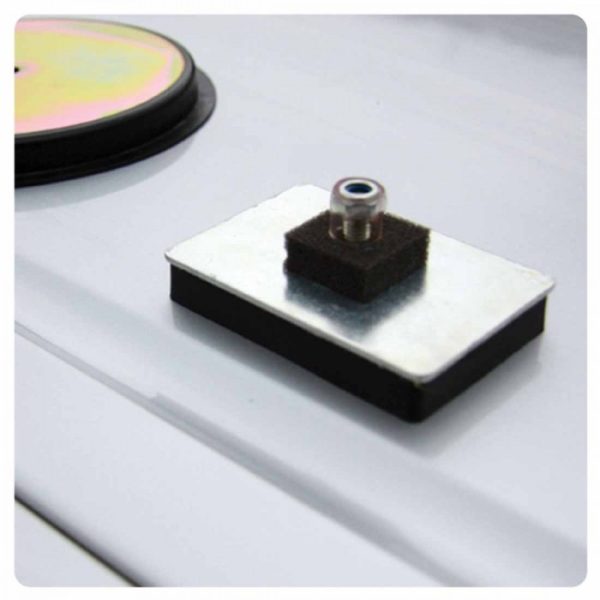

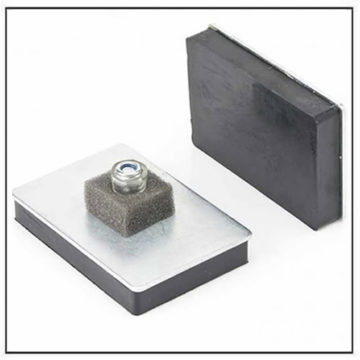

Rubber Covered Magnetic Mounting Pad MagPad-3
Part No.: MagPad-3
MagPad-3 Rubber Covered Magnetic Mounting Pad, Rubber Coated Threaded Stud Magnetic Pad, Extra Strong Magnet Plate Holder, Threaded Stud Car Roof Top Magnet China Manufacturer
Rubber Covered Magnetic Mounting Pad Part No. MagPad-3 by HSMAG Features :
MagPad-3 item magnetic pads are accepted as being the best method for holding signs (Learner driver and taxi) on the roofs of cars, whether on the garage forecourt or driving around on the roads.
Make your own vehicle roof sings. Strong magnetic pads wth anti slip properties designed for use on vehicle roof signs and other fixing applications where an exeptionally strong hold is required.
Magnetised with a six-pole striped magnetic field on the magnetic pad
Form: Rubber covered magnets | zinc plated
Material: Ferrite magnets assembled on to a mild steel backing plate with a protective rubber coating over the magnets.
Ferrite Grade Y30BH / Y35 / Y33 …
Housing Galvanized steel
Rubber coated to increase friction and reduce corrosion
Suitable for use with Taxi Signs, Adverting Signs and Driving School signs
Magpads have been developed to provide a range of handy and powerful limpet magnets with a soft contact base to minimize the possibility of damage to paintwork, particularly when applying and removing the Magpad. All Magpads have a multipole magnet circuit to give the combination of good pull-off as well as sideways/shear resistance. The magnets are encapsulated in a polyurethane compound which provides a soft contact surface. The metal top of the Magpad is zinc plated for corrosion resistance. Magpads come in a variety of sizes with various stud and screw hole mounts as detailed.
A unique product, the ‘Rubber Covered Magnet Plate Holder’ is ideal for fixing rooftop signs to vehicles or other signs to any steel surface. The rubber magnetic pad is designed to provide an extremely high resistance to shear forces as well as excellent pull strength. Objects can be fixed to the pad using the locking nut and bolt assembly provided and the six-pole striped magnetic field will then ensure that the sign or object is securely attached to a steel surface.
|Part No.||Length mm||Width mm||Thickness mm||Force kg||Shear force kg||Thread MxL|
Typical uses: include lighting systems, magnetic brackets, car roof signs (e.g. taxi signs), antenna clamp systems, lighting fixtures, security gates, vehicle tracking units, temporary signage, adverting signs, driving school signs, attaching to boards and pictures to metal partitions, door clamps, etc.
