Magnetisation Grade: N35
Magnet Material: Neodymium-Iron-Boron (NdFeB, Neo)
Magnet ID: RMS-H-66
Plating / Coating: Rubber or Plastic Jacket
Shape: Magnetic systems with Handle / Cylindrical grip
Magnetic systems Size:
D 66,0 mm
d2 25,0 mm
h1 8 mm
m M6
H 108 mm
weight 0,167 kg
Holding Force 25,000 kg
Tolerance: ±0.05 mm
Magnetisation Direction: Axial / Diametrical
Residual Magnetic Flux Density (Br): 1170-1220 mT (11.7-12.2 kGs)
Energy Density (BH)max: 263-287 KJ/m³ (33-36 MGOe)
Coercivity Force (Hcb): ≥ 868 kA/m ( ≥ 10.9 kOe)
Intrinsic Coercivity Force (Hcj): ≥ 955 kA/m ( ≥ 12 kOe)
Maximum Operation Temperature: 80 °C
Delivery Time: 14-35 days

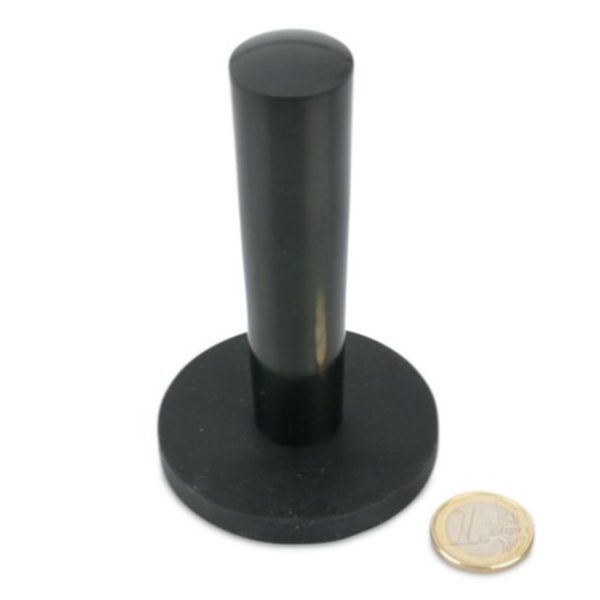

Rubber Coated Graphic Magnet Ø 66mm
Product Description
Rubber Coated Graphic Magnet Ø 66mm, Magnet system with handle, Rubber Coated Magnetic System with Cylinder Grip, Magnetic Signs Gripper, Magnetic Gripper, Practical Magnetic Tool with Handle, Graphic Magnetic Systems, Powerful Vehicle Graphic Magnets with Handle China supplier
Rubber Coated Graphic Magnet Ø 66mm Part No. RMS-H-66 by HSMAG Features :
Material: Rubber or Plastic Coating, Housing steel and Magnetic core hard sintered neodymium permanent magnet with grip / handle.
Version: Rubber Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=66 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
Graphic Magnets
– useful tool for positioning vinyl graphics to the side of vehicle prior to application –
Thanks to the arrangement of magnets and the rubber coating, this type of magnetic system is ideal for use on surfaces which should not be scratched and / or where movement or slippage of a normal metal pot magnet system is a problem. This makes its use recommended for painted or varnished articles, or for applications where a strong magnetic force is needed, without marking or scratching surfaces
We have in stock for customer immediate needs. Besides, we can make other sizes to custom designs.
Max pull is tested on a ½” thick and flat machined steel plate. The actual pull should be smaller if your steel is thinner, rough, rusty, coated or not very flat. For any critical applications, three-time safety factor is strongly recommended.
Application of Rubber Coated Neodymium Magnet Mount:
The strong Neodymium magnet is applied with high quality rubber coating, which ensures a safe contact surface when you apply the magnetic sign gripper onto the cars etc.
Designed with a long handle fixed on the top, giving the user extra leverage when positioning often delicate vinyl media. Also, they are suitable for other holding applications when in contact with steel surfaces.
| Part No. | Dimension (mm) | Thread | Weight | Holding Force | |||
| D | h1 | H | d2 | M | (g) | (Kg) | |
| RMS-H-43RED | 43 | 6 | 45 | 18 | M4 | 42 | 10 |
| RMS-H-43 | 43 | 6.5 | 60 | 15 | M4 | 45 | 10 |
| RMS-H-66 | 66 | 8 | 108 | 25 | M6 | 167 | 25 |
| RMS-H-88 | 88 | 8.5 | 108 | 25 | M6 | 260 | 55 |
High quality pot/cup magnet assemblies made with super strong rare earth neodymium magnets and ceramic magnets for Home or Industrial uses.
