Magnetisation Grade: N35
Magnet Material: Neodymium-Iron-Boron (NdFeB, Neo)
Magnet ID: RMS-H-43RED
Plating / Coating: Rubber or Plastic Jacket
Shape: Magnetic systems with Handle / Cylindrical grip
Magnetic systems Size:
D 43,0 mm
d2 18,0 mm
h1 6 mm
m M4
H 45 mm
weight 0,042 kg
Holding Force 10,000 kg
Tolerance: ±0.05 mm
Magnetisation Direction: Axial / Diametrical
Residual Magnetic Flux Density (Br): 1170-1220 mT (11.7-12.2 kGs)
Energy Density (BH)max: 263-287 KJ/m³ (33-36 MGOe)
Coercivity Force (Hcb): ≥ 868 kA/m ( ≥ 10.9 kOe)
Intrinsic Coercivity Force (Hcj): ≥ 955 kA/m ( ≥ 12 kOe)
Maximum Operation Temperature: 80 °C
Delivery Time: 14-35 days

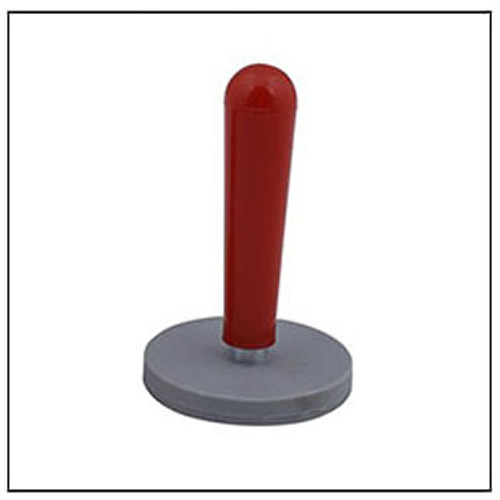

Red Rubber Covered Magnetic Signs Gripper Ø 43mm
Product Description
Red Rubber Covered Magnetic Signs Gripper Ø 43mm, Rubber Coated Magnetic System with Cylinder Grip, Neodymium magnet systems with rubber coating and a cylindrical grips, Rubber Coated Magnet Cup Assemblies China supplier
Red Rubber Covered Magnetic Signs Gripper Ø 43mm Part No. RMS-H-43RED by HSMAG Features :
Material: Rubber or Plastic Coating, Housing steel and Magnetic core hard sintered neodymium permanent magnet with grip / handle.
Version: Rubber Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=43 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
New magnetic Sign Gripper is a powerful magnetic holding tool for vehicle sign appliers. Manufactured using powerful rare earth magnets, Sign-Gripper is the ideal solution for holding vinyl graphics in place on vehicle surfaces. This cleverly engineered tool consists of rubber coated neodymium, ensuring a safe contact is achieved when applying graphics to cars etc. Designed with a long handle, giving the user extra leverage when positioning often delicate vinyl media. Also suitable for other holding applications when in contact with steel surfaces.
25lbs holding force keep your vinyl graphics in place and makes your hands free
* the specially designed magnet has a rubber cover to help prevent scratching on your lovely vehicle
* it is easy and flexible to align panels on vehicle and save you a lot time during working.
* longer handle help you move it with less force
* very competitive pricing from original manufaturer
Application of Rubber Coated Neodymium Magnet Mount:
The strong Neodymium magnet is applied with high quality rubber coating, which ensures a safe contact surface when you apply the magnetic sign gripper onto the cars etc.
Designed with a long handle fixed on the top, giving the user extra leverage when positioning often delicate vinyl media. Also, they are suitable for other holding applications when in contact with steel surfaces.
Part No. | Dimension (mm) | Thread | Weight | Holding Force | |||
D | h1 | H | d2 | M | (g) | (Kg) | |
RMS-H-43RED | 43 | 6 | 45 | 18 | M4 | 42 | 10 |
RMS-H-43 | 43 | 6.5 | 60 | 15 | M4 | 45 | 10 |
RMS-H-66 | 66 | 8 | 108 | 25 | M6 | 167 | 25 |
RMS-H-88 | 88 | 8.5 | 108 | 25 | M6 | 260 | 55 |
High quality pot/cup magnet assemblies made with super strong rare earth neodymium magnets and ceramic magnets for Home or Industrial uses.
