Alnico Shallow Pot Magnets
Dimensions (mm) Screw Magnetic Force
Item No. A B C (kg)
HSSPM-02 38.1 10.35 5.2 M4 13
Red Painted AlNiCo Shallow Pot Magnet
Alnico Shallow Pot Magnets
Red Painted AlNiCo Shallow Pot Magnet, AlNiCo Mounting Pot Magnet, Shallow Pot Alnico Magnet, Alnico Round Base Magnet, Pot Magnet Alnico Assemblies, Alnico Magnets Shallow Pot with Countersunk China Supplier

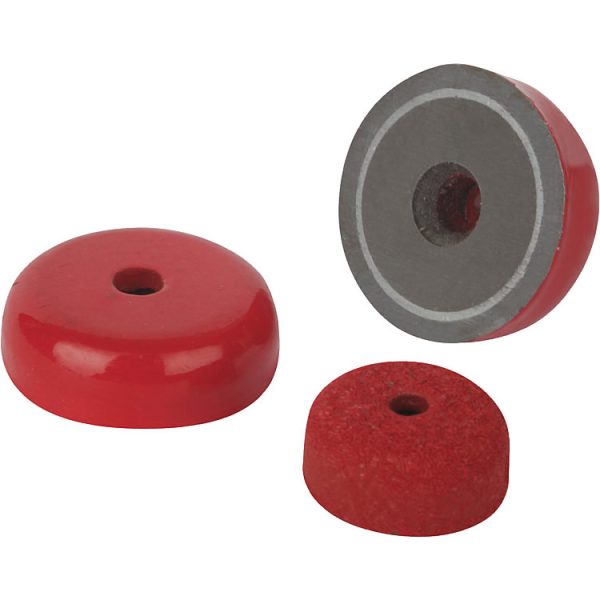

Red Painted AlNiCo Shallow Pot Magnet Part No. HSSPM-03 by HSMAG Features :
This Alnico Shallow Pot Magnet has a diameter of 38mm and a height of 10.5mm.
450° maximum operating temperature
Alnico 5 magnet material and mild steel pot
Good corrosion resistance
Mounting Pot Magnet / Shallow Pot Magnet
The countersunk mounting pot magnet is also known as a shallow pot magnet (a term often used with ferrite material as the inner magnet but other magnet materials are used).

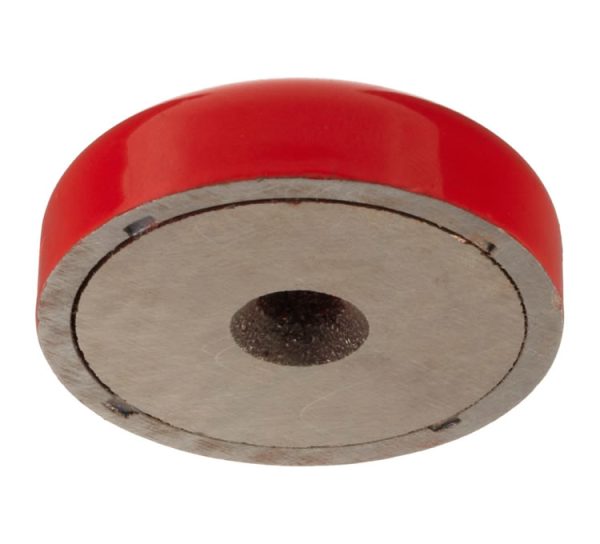

The countersunk mounting pot magnet / shallow pot magnet is a ferromagnetic steel cup into which is inserted a countersunk ring magnet. There is a hole all the way through the countersunk mounting pot magnet / shallow pot magnet. This allows a screw head to be inserted into the countersunk mounting pot magnet / shallow pot magnet to screw the countersunk mounting pot magnet / shallow pot magnet to any material of your choice to give a good mechanical hold. Take care not to over tighten the screw to prevent breaking the magnet material (which is brittle in nature).
Alnico pot magnets are engaged throughout construction, manufacturing and electronics devices as joining, fastening and connective tissue in place of first and last chance fixings, like screws, nails, bolts and glues. Alnico pot magnets are safe and secure, permanent and practical, reliable and reusable. Magnetic bond inflicts no damage, no spoiling penalty to materials joined or held in this manner.
Some manufacturers specialise in making sensors like temperature gauges. These companies will design, manufacture, provide machining and perform mechanical assembly to an individual client’s needs. Temperature is a vital measurement for just about anything, especially in relation to machinery and food preparation.
With a threaded void for the option of placing onto a spool, axle or rod these versatile magnets express a predictable, intuitive and reliable push and pull force housed in myriad sensors, including measuring temperature and pressure.
In machine workshops these alnico pot magnets enable jigs profiling metal and plastic forms into sophisticated customised manufactured goods to express the mechanical power of jig held tools in a smooth, unerring and controlled and determined manner.
As connective tissue in fabrications such as cabinetry and advertising displays, pot magnets slot into drill cut voids in many different materials for precision assembly in a modern seamless fashion. Magnetism rewards periodic disassembly for cleaning or servicing with a simple intuitive pull release and a ‘grab and grin’ reassembly everyone loves.
Where sterilizing or strict cleaning protocols must be observed, like commercial kitchens and cool rooms, scientific laboratories and hospitals and care facilities, magnetic engagement makes these chores a breeze.
|Part No.||Height (mm)||Hole Size||Screw Head Size||Weight (kg)||Pull Force (kg)||Dia. D (mm)|
Shallow pot magnets manufactured in Alnico are mostly used for jigs & fixtures, holding and gripping applications where there are height restrictions.
