Material: Neodymium (NdFeB ) and Steel
Part No.: HS-NE70
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Hook
Pot Magnet Size:
Pot Total Diameter (D): 70 mm
Hole Diameter (D1): 17 mm
Pot Height (H): 34.2 mm
Hook Total Height (H1): 83.2 mm
Thread M: M10
Weight: 531 g
Holding Force: 153 kg
Tolerance: ±0.1 mm
Maximum Operation Temperature: 80 °C
Delivery Time: 7-15 days
Made in China

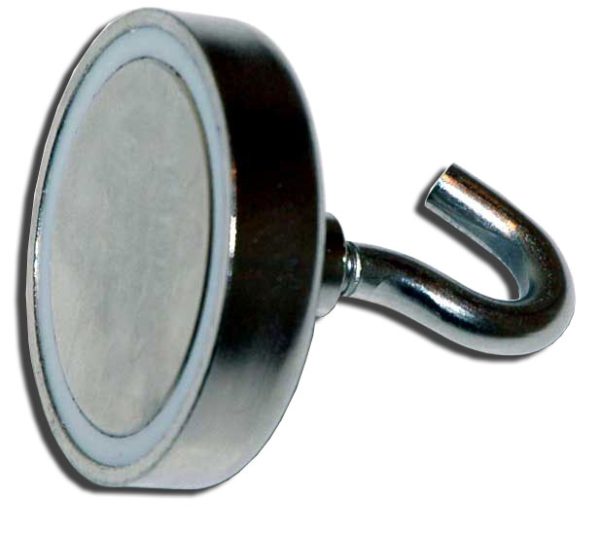

Rare Earth Hook Magnet Ø70 mm
Product Description
Rare Earth Hook Magnet Ø70 mm, Super Strong Magnetic Hooks, Mounting & Holding System, Rare Earth Sintered Neodymium Hook Magnet Assemblies China Supplier
Rare Earth Hook Magnet Ø70 mm X 83.2 mm Part No.HS-NE70 by HSMAG Features :
Material: Housing steel and Magnetic core sintered neodymium magnet with hook.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with Hook. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=70 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
HSMAG Neodymium Iron Boron Pot Magnets compliment our Alnico Pot Magnets by delivering large holding powers in small packages. These magnets are designed to be “Low Profile,” but still incorporate a tapped hole in the back wall for mounting.
The Neo Pot Magnets not only have a potent attraction while in direct contact with a work piece, but they also have excellent field projection capabilities.
NEODYMIUM with higher operating Temperatures and Intrinsic Coercive Forces are available in these Pot Magnets. Samarium Cobalt and Stainless shells and shields are also manufactured. The all Stainless Pot Magnets, for both Alnico and Neodymium, are a Level I or II food grade unit.
All HSMAG Pot Magnets are Centerless Ground after pressing to ±0.003″. The standard tolerance on the length is ±0.015″. Tighter tolerances are available upon request.
Hook magnets neodymium: strong & practical
Our magnets with hooks consist of a neodymium alloy and are embedded in a steel pot, which increases the adhesive force that is lead down into the surface. We carry small hooks with a diameter of 10 mm as well as large ones with 63 mm. The latter can hold a maximum weight of 110 kg when used on the ceiling (e.g. steel beam).
•Practical & and flexible
•Hold all kinds of objects up to 110 kg
•Many different sizes and adhesive forces
Sintered NdFeB Magnetic Mounting Hook Ø48 mm
| Part No. | Dimension (mm) | Weight | Holding Force | |||||
| D | D1 | M | h | H | H1 | (g) | (Kg) | |
| HS-NE6 | 6 | 4.5 | 3 | 4.7 | 10.5 | 32.5 | 4 | 0.5 |
| HS-NE8 | 8 | 4.5 | 3 | 4.7 | 11.5 | 33.5 | 4 | 1 |
| HS-NE10 | 10 | 6 | 3 | 5 | 12.5 | 34.5 | 5 | 1.5 |
| HS-NE12 | 12 | 6 | 3 | 5 | 12.5 | 34.5 | 7 | 3 |
| HS-NE14 | 14 | 6.5 | 4 | 4.5 | 12.5 | 35 | 10 | 5 |
| HS-NE16 | 16 | 6.5 | 4 | 5.2 | 13.5 | 35.7 | 12 | 8 |
| HS-NE16-1 | 16 | 6.5 | 4 | 5.3 | 13.5 | 36 | 13 | 8 |
| HS-NE18 | 18 | 6.5 | 4 | 6 | 13.8 | 36.3 | 16 | 10 |
| HS-NE20 | 20 | 6.5 | 4 | 7.2 | 15 | 37.8 | 21 | 12 |
| HS-NE20-1 | 20.2 | 6.5 | 4 | 6 | 13.8 | 36.3 | 18 | 12 |
| HS-NE22 | 22 | 6.5 | 4 | 6.9 | 16.2 | 38.7 | 24 | 18 |
| HS-NE25 | 25 | 7.5 | 5 | 7.7 | 17 | 44.9 | 33 | 22 |
| HS-NE25-1 | 25 | 7.5 | 5 | 6.9 | 16.2 | 43.7 | 32 | 22 |
| HS-NE28 | 28 | 7.5 | 5 | 6.4 | 15.7 | 43.2 | 36 | 26 |
| HS-NE30 | 30 | 7.5 | 5 | 6.4 | 16.6 | 44.1 | 41 | 29 |
| HS-NE32 | 32 | 10 | 6 | 7.8 | 18 | 47.8 | 54 | 34 |
| HS-NE32-1 | 32 | 10 | 6 | 6.8 | 17 | 48.3 | 54 | 34 |
| HS-NE34 | 34 | 10 | 6 | 7.3 | 17.5 | 48.8 | 61 | 37 |
| HS-NE36 | 36 | 10 | 6 | 7.6 | 18.5 | 49.8 | 64 | 41 |
| HS-NE36-1 | 36 | 10 | 6 | 6.9 | 17.8 | 49.1 | 67 | 41 |
| HS-NE38 | 38 | 10 | 6 | 7.4 | 18.3 | 49.6 | 77 | 46 |
| HS-NE40 | 40 | 10 | 6 | 7.9 | 18.8 | 50.1 | 87 | 51 |
| HS-NE42 | 42 | 10 | 6 | 8.8 | 18.8 | 50 | 93 | 68 |
| HS-NE42-1 | 42 | 10 | 6 | 7.9 | 18.8 | 50.1 | 95 | 68 |
| HS-NE45 | 45 | 12 | 8 | 8.7 | 19.6 | 56.6 | 123 | 75 |
| HS-NE48 | 48 | 12 | 8 | 10.8 | 24 | 61 | 150 | 81 |
| HS-NE48-1 | 48 | 12 | 8 | 9.6 | 22.8 | 59.8 | 148 | 81 |
| HS-NE50 | 50 | 12 | 8 | 10.7 | 25.6 | 62.6 | 173 | 91 |
| HS-NE55 | 55 | 12 | 8 | 12 | 29.2 | 66.2 | 231 | 102 |
| HS-NE60 | 60 | 12 | 8 | 15 | 28 | 66 | 283 | 120 |
| HS-NE60-1 | 60 | 12 | 8 | 13.9 | 32.2 | 69.2 | 305 | 120 |
| HS-NE65 | 65 | 12 | 8 | 14.9 | 32.2 | 69.2 | 378 | 137 |
| HS-NE70 | 70 | 17 | 10 | 16.9 | 34.2 | 83.2 | 531 | 153 |
| HS-NE75 | 75 | 17 | 10 | 17.8 | 35 | 84 | 555 | 178 |
| HS-NE75-1 | 75 | 17 | 10 | 17.9 | 35 | 84 | 627 | 178 |
| HS-NE80 | 80 | 17 | 10 | 19 | 36.2 | 85.2 | 744 | 200 |
Application areas hook magnets
Our neodymium magnetic hooks have all the advantages of a super magnet, in addition to the practical aspect of the hook. They can be used in industry, interior fitting, kitchen design, store and booth construction as well as wholesale and retail. But also private customers appreciate our magnetic hooks, especially the smaller ones. They can be used for hanging up various objects at home, for instance for clothing, office material, kitchen utensils, signs, and seasonal decoration. Let the versatile applications with hook magnets inspire you.
Since you can remove the hook, you can attach something else to the magnet, as long as it has the same thread as the hook.
The nickel coating somewhat protects the hook magnets against corrosion. It is not sufficient for outdoor use, however.
