Material: Neodymium (NdFeB ) and Steel
Part No.: HS-NB25
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Ring with Countersunk hole (90° sunken hole)
Pot Magnet Size:
Pot Total Diameter (D): 25 mm
Pot Bottom Diameter (D1): 5.5 mm
Pot Countersunk Diameter (D2): 9 mm
Pot Total Height (H): 7.7 mm
Tolerance: ±0.1 mm
Weight: 22 g
Holding Force: 20 kg
Maximum Operation Temperature: 80 °C
Delivery Time: 7-15 days

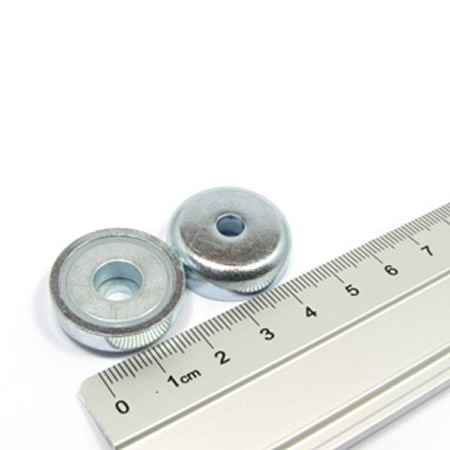

Powerful Pot Magnets with Hole Ø 25 X 7.7 mm
Product Description
Powerful Pot Magnets with Hole Ø 25 X 7.7 mm, Strong Rare Earth Neodymium Pot Magnets with Borehole, NdFeB Holding Permanent Magnets, Through Hole Magnetic Pot
Powerful Pot Magnets with Hole Ø 25 X 7.7 mm Part No.HS-NB25 by HSMAG Features :
Material: Housing steel and Magnetic core sintered neodymium ring magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow flat pot magnets with cylindrical hole. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=25 version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
Each magnet is only magnetic on the borehole face
Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
Can be fixed in place with 5mm diameter borehole screws
Technical Specifications:
Form / Model: borehole pot magnets screw-on
Material:metal
Dimension:Ø 10 – 80mm
Tolerance:+ / – 0,1 mm
Application:Strong Neodymium pot magnets with a hole on the magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Part No. | Dimension (mm) | Weight | Holding Force | |||
D | D1 | D2 | H | (g) | (Kg) | |
HS-NB10 | 10 | 3.5 | 6.5 | 5 | 2 | 1 |
HS-NB12 | 12 | 3.5 | 6.5 | 5 | 4 | 1.5 |
HS-NB14 | 14 | 3.5 | 6.5 | 4.5 | 5 | 3 |
HS-NB16 | 16 | 3.5 | 6.5 | 5.2 | 7 | 5 |
HS-NB16-1 | 16 | 3.5 | 6.5 | 5.3 | 7 | 5 |
HS-NB18 | 18 | 4.5 | 8 | 6 | 10 | 6 |
HS-NB20 | 20 | 4.5 | 8 | 7.2 | 13 | 8 |
HS-NB20-1 | 20 | 4.5 | 8 | 6 | 12 | 8 |
HS-NB22 | 22 | 4.5 | 8 | 6.9 | 17 | 16 |
HS-NB25 | 25 | 5.5 | 9 | 7.7 | 22 | 20 |
HS-NB25-1 | 25 | 5.5 | 9 | 6.9 | 23 | 20 |
HS-NB28 | 28 | 5.5 | 9 | 6.4 | 27 | 23 |
HS-NB30 | 30 | 5.5 | 9 | 6.4 | 32 | 27 |
HS-NB32 | 32 | 5.5 | 9 | 7.8 | 38 | 30 |
HS-NB32-1 | 32 | 5.5 | 9 | 6.8 | 38 | 30 |
HS-NB34 | 34 | 5.5 | 9 | 7.3 | 44 | 33 |
HS-NB36 | 36 | 6.5 | 11 | 7.6 | 48 | 40 |
HS-NB36-1 | 36 | 6.5 | 11 | 6.9 | 50 | 40 |
HS-NB38 | 38 | 6.5 | 11 | 7.4 | 59 | 44 |
HS-NB40 | 40 | 6.5 | 11 | 7.9 | 69 | 50 |
HS-NB42 | 42 | 6.5 | 11 | 8.8 | 75 | 65 |
HS-NB42-1 | 42 | 6.5 | 11 | 7.9 | 76 | 65 |
HS-NB45 | 45 | 8.5 | 15 | 8.7 | 89 | 70 |
HS-NB48 | 48 | 8.5 | 15 | 10.8 | 114 | 75 |
HS-NB48-1 | 48 | 8.5 | 15 | 9.6 | 111 | 75 |
HS-NB50 | 50 | 8.5 | 15 | 10.7 | 134 | 81 |
HS-NB55 | 55 | 8.5 | 15 | 12 | 189 | 93 |
HS-NB60 | 60 | 8.5 | 15 | 15 | 235 | 110 |
HS-NB60-1 | 60 | 8.5 | 15 | 13.9 | 260 | 110 |
HS-NB65 | 65 | 8.5 | 15 | 14.9 | 333 | 122 |
HS-NB70 | 70 | 10.5 | 18 | 16.9 | 429 | 138 |
HS-NB75 | 75 | 10.5 | 18 | 17.8 | 460 | 155 |
HS-NB75-1 | 75 | 10.5 | 18 | 17.9 | 524 | 155 |
HS-NB80 | 80 | 10.5 | 18 | 19 | 641 | 192 |
Rare Earth Neodymium Pot Magnets / Neodymium Mounting Magnets are extremely useful for holding, actuating, pulling, hanging, locating, separating, retrieving…the list never ends!
SOME OF THE MANY USES FOR POT MAGNETS INCLUDE:
Holding temporary safety or advisory flags on railways and industrial sites
Concreting applications where reo off-cuts need removing before a slab is poured
Keeping doors open or closed
Document holding on office or factory walls
Switch actuation
Cable hanging
Stringline tie downs on building sites
Sign holdings
