Product Description

Neodymium Huge Eyebolt Magnet Ø80 mm, Rare Earth Neo Magnetic Pot with Eyebolt, NdFeB Cup Magnet, China Eyebolt Magnet, Strong Magnets China Manufacturer

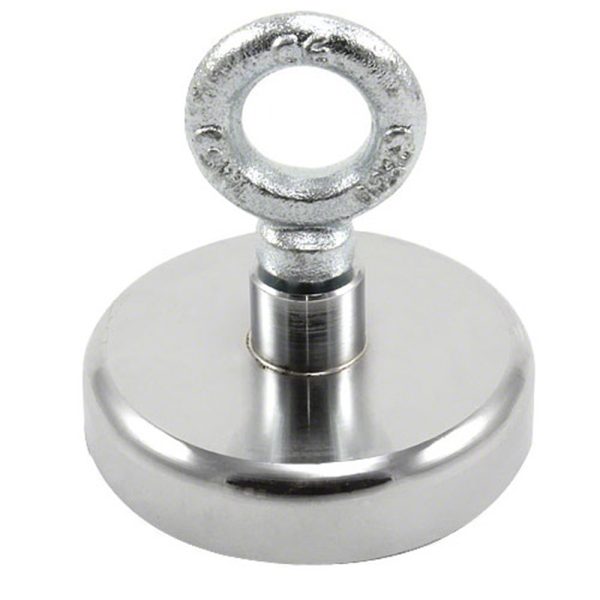

Neodymium Huge Eyebolt Magnet Ø80 mm X 85.2 mm Part No.HS-NF80 by HSMAG Features :

Material: Housing steel and Magnetic core sintered neodymium internal female threaded magnet with eyebolt.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with internal threaded and eyelet. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=80 version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

Pot Magnets offer an increase in clamping force onto ferromagnetic materials because the magnets are inside a ferromagnetic casing (Ni or Zinc plated mild steel) which gives an improved magnetic circuit. This allows high clamping forces to be achieved with minimal size.
The Pot Magnet with External Threaded Stud / Boss Mounting can be screwed into M4, M5, M6 and M8 holes. Or the Pot Magnet with External Threaded Stud / Boss Mounting can be put into a standard hole and a nut can be used to clamp it in place.
Features:
– Magnet is encapsulated on all but one side with a protective steel holding pot.
– Incorporates a countersunk hole for use with flathead screws.
– Powerful Rare Earth (Neodymium) permanent magnet.
– High gloss Nickel coating, for protection against corrosion.
– Maximum operating temperature 80°C / 100°C
It is possible to produce bespoke Pot Magnets with External Threaded Stud / Boss Mounting but a minimum order quantity may be required (the minimum quantity depends on the size, shape and performance required). We can send our extended range brochure upon request.
