Material: Neodymium (NdFeB ) and Steel
Part No.: HS-ND34
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Internal Threaded Stud
Pot Magnet Size:
Pot Total Diameter (D): 34 mm
Pot Magnet Diameter (D1): 10 mm
Pot Height (h): 7.3 mm
Total Height (H): 17.5 mm
Thread M: M6
Tolerance: ±0.1 mm
Weight: 52 g
Holding Force: 37 kg
Maximum Operation Temperature: 80 °C
Delivery Time: 7-15 days
Made in China

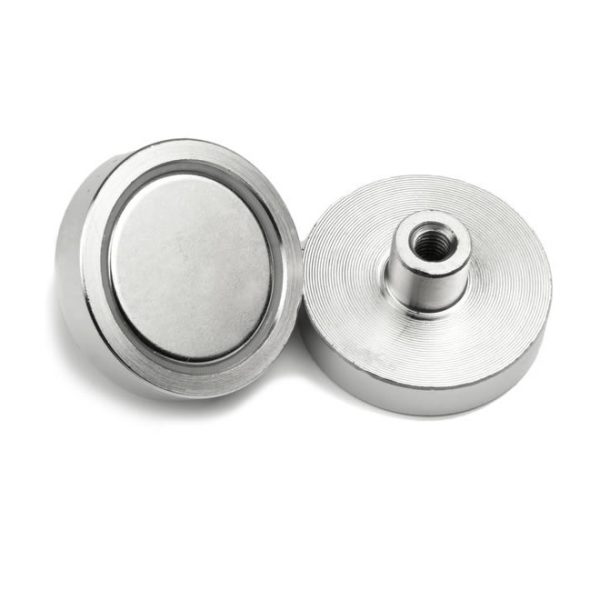

NdFeB Pot Magnet with Internal Threaded Stud / Boss Mounting Ø34 mm
Product Description
NdFeB Pot Magnet with Internal Threaded Stud / Boss Mounting Ø34 mm, NdFeB Internal Screw Thread Holding Magnet, Female Stud Pot Magnet, Neodymium Pot Magnets with Threaded Bushing China Supplier
NdFeB Pot Magnet with Internal Threaded Stud / Boss Mounting Ø34 mm X 17 mm Part No.HS-ND34 by HSMAG Features :
Material: Housing steel and Magnetic core sintered neodymium magnet with internal thread .
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with Internal Threaded Stud. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=34 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
Holding Pot Magnet with Internal Threaded
A HSMAG magnets is sole provider of pot magnets that are internally threaded stud popularly known as Internal Threaded Stud. These magnets have a very large force, which can clamp down the ferromagnetic material because of its Ni or Zinc plated mild steel. Thus, allow a magnetic circuit with improved material, which can achieved with minimal sizes.
Pot Magnets with internal thread stud/Boss mounting have that thick steel backing with female thread section. With help of threads like M4 and M10 screw and a bolt, these magnets have a platform, which can hold the pot magnets with much efficient internal thread with Stud/Boss mounting on the place.
Stud Neodymium Pot Magnets Ø16 mm
NdFeB Pot Magnet with External Threaded Stud
The NdFeB Pot Magnet with External Threaded Stud / Boss Mounting can be screwed into M5, M6 and M8 tapped holes. Or the Pot Magnet with External Threaded Stud / Boss Mounting can be put into a standard hole and a nut can be used to clamp it in place. The NdFeB Pot Magnet with External Threaded Stud / Boss Mounting offers maximum clamping forces from 6kg up to 43kg. Bespoke units can be made upon request.
NdFeB Pot Magnet with Internal Threaded Mounting
The NdFeB Pot Magnet with Internal Threaded Mounting is also known to many as a Deep Pot Magnet. It has M3, M4, M5, M6 and M8 internal threads and offers maximum clamping forces from 1kg up to 50kg. We can produce other sizes upon request.
Part No. | Dimension (mm) | Weight | Holding Force | ||||
D | D1 | M | h | H | (g) | (Kg) | |
HS-ND6 | 6 | 4.5 | 3 | 4.7 | 10.5 | 2 | 0.5 |
HS-ND8 | 8 | 4.5 | 3 | 4.7 | 11.5 | 3 | 1 |
HS-ND10 | 10 | 6 | 3 | 5 | 12.5 | 4 | 1.5 |
HS-ND12 | 12 | 6 | 3 | 5 | 12.5 | 5 | 3 |
HS-ND14 | 14 | 6.5 | 4 | 4.5 | 12.5 | 7 | 5 |
HS-ND16 | 16 | 6.5 | 4 | 5.2 | 13.5 | 9 | 8 |
HS-ND16-1 | 16 | 6.5 | 4 | 5.3 | 13.5 | 10 | 8 |
HS-ND18 | 18 | 6.5 | 4 | 6 | 13.8 | 13 | 10 |
HS-ND20 | 20 | 6.5 | 4 | 7.2 | 15 | 17 | 12 |
HS-ND20-1 | 20.2 | 6.5 | 4 | 6 | 13.8 | 15 | 12 |
HS-ND22 | 22 | 6.5 | 4 | 6.9 | 16.2 | 21 | 18 |
HS-ND25 | 25 | 7.5 | 5 | 7.7 | 17 | 28 | 22 |
HS-ND25-1 | 25 | 7.5 | 5 | 6.9 | 16.2 | 27 | 22 |
HS-ND28 | 28 | 7.5 | 5 | 6.4 | 15.7 | 31 | 26 |
HS-ND30 | 30 | 7.5 | 5 | 6.4 | 16.6 | 36 | 29 |
HS-ND32 | 32 | 10 | 6 | 7.8 | 18 | 45 | 34 |
HS-ND32-1 | 32 | 10 | 6 | 6.8 | 17 | 45 | 34 |
HS-ND34 | 34 | 10 | 6 | 7.3 | 17.5 | 52 | 37 |
HS-ND36 | 36 | 10 | 6 | 7.6 | 18.5 | 55 | 41 |
HS-ND36-1 | 36 | 10 | 6 | 6.9 | 17.8 | 58 | 41 |
HS-ND38 | 38 | 10 | 6 | 7.4 | 18.3 | 68 | 46 |
HS-ND40 | 40 | 10 | 6 | 7.9 | 18.8 | 78 | 51 |
HS-ND42 | 42 | 10 | 6 | 8.8 | 18.8 | 84 | 68 |
HS-ND42-1 | 42 | 10 | 6 | 7.9 | 18.8 | 86 | 68 |
HS-ND45 | 45 | 12 | 8 | 8.7 | 19.6 | 103 | 75 |
HS-ND48 | 48 | 12 | 8 | 10.8 | 24 | 130 | 81 |
HS-ND48-1 | 48 | 12 | 8 | 9.6 | 22.8 | 128 | 81 |
HS-ND50 | 50 | 12 | 8 | 10.7 | 25.6 | 153 | 91 |
HS-ND55 | 55 | 12 | 8 | 12 | 29.2 | 211 | 102 |
HS-ND60 | 60 | 12 | 8 | 15 | 28 | 263 | 120 |
HS-ND60-1 | 60 | 12 | 8 | 13.9 | 32.2 | 285 | 120 |
HS-ND65 | 65 | 12 | 8 | 14.9 | 32.2 | 358 | 137 |
HS-ND70 | 70 | 17 | 10 | 16.9 | 34.2 | 481 | 153 |
HS-ND75 | 75 | 17 | 10 | 17.8 | 35 | 515 | 178 |
HS-ND75-1 | 75 | 17 | 10 | 17.9 | 35 | 577 | 178 |
HS-ND80 | 80 | 17 | 10 | 19 | 36.2 | 694 | 200 |
Internal threaded Stud/Boss pot magnets have coating with white paint casing and this why these magnets are the inoperative choice for point for sale magnets, windows dressing magnets, ceiling magnets and door magnets.
