Product Description

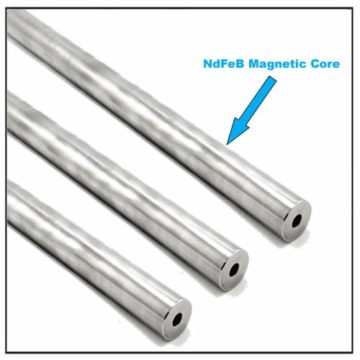

NdFeB Magnetic Filter Bar, Strong Powerful Neodymium Magnetic Filter Bar, Round Magnetic Bars, Standard NdFeB Magnetic Tube, Magnetic Cartridges, Neodymium Magnetic Rod China Supplier

NdFeB Magnetic Filter Bar Feature:
Part No. : NMTR-22* / NMTR-32*
*: If length is 250, part no. is NMTR-22*250
Material: NdFeB / Neodymium
NdFeB Magnetic Filter Rods (Neodymium-Iron magnetic core) can filter out ferrous foreign objects from solids and liquids. They are installed for this purpose in the material flow. For example, they filter out iron and steel abrasions or grinding residues of oil or coolant systems. Residues are simply wiped off by hand for cleaning.

Design and characteristics
The magnetic material is enclosed in a corrosion-resistant stainless steel housing. Due to a waterproof design, no liquids can penetrate the interior of the system.

Models
with neodymium magnets (NdFeB) and an operating temperature up to 80 °C and a magnetic force up to five times stronger compared to the model with ferrite magnets.

Diameter and thread
As a standard, the magnetic filter bars have the following diameters and connecting threads in the end caps:
D 22 mm with with both-sided inner thread M 6 x 10
D 32 mm with with both-sided inner thread M 8 x 10

Customized models
The following models are available on request: · one-sided inner thread
outer thread
operating temperature up to 300 °C
special lengths up to 1,000 mm

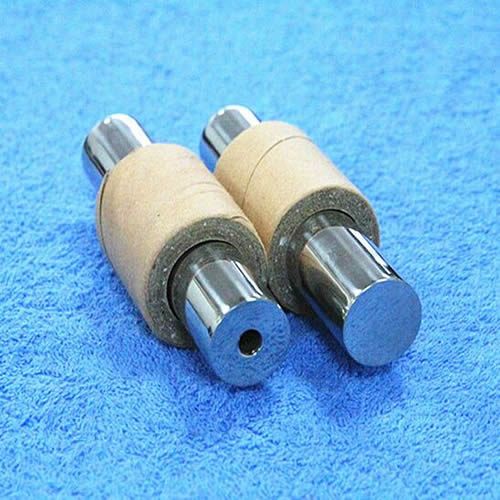

What is Magnetic Tube?

Magnetc Tubes are named just because they are made from the strong NdFeB or SmCo,Ferrite Magnets are in stainless steel tubes by fully or non-fully welding . Because the appearance of stainless steel rod or bar with well polishing, many customers also call them magnetic rods,magnetic bars, magnetic filter bars, or magnet bar. they are most efficient permanent magnetic unit for catching, removing ferrous metals from various materials in different field. Accroding to different condition, they can be assemblied into grate magnets, magnetic drawer or magnetic trap with other stainless steel parts. There are square, round shap magnetic tubes .

Embeded Fixing Magnet

Threaded Fixing Neodymium Inserted Magnet

Ferrite Magnetic Filter Bar
