Product Description

Large Mounting Magnet with Borehole Ø 75 X 17.9 mm, Strong Neodymium Cylindrical Hole Pot Magnet, Big China Holding Magnet, Through Hole NdFeB Cup Magnet Exporter

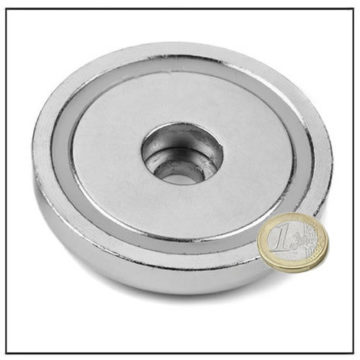

Large Mounting Magnet with Borehole Ø 75 X 17.9 mm Part No.HS-NB75-1 by HSMAG Features :

Material: Housing steel and Magnetic core sintered neodymium ring magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow flat pot magnets with cylindrical hole. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=75 version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

Pot magnets of neodymium and ferrite
With our flat grippers – even pot magnets, mounting magnets, mounting magnets or magnets or gripping called – the magnetic core is integrated in a round steel pot – so by the resulting magnetic short circuit the magnetic flux and thus the adhesive force is amplified.
Due to the fact only possible very low profile design of this magnet gets its name – “flat-Grapples”.
Easily mounted for secure attachment for lifting or grasping this magnet is an ideal and releasable connection not only in metal, plant, fair or shop.
Variants are available with neodymium and ferrite magnetic core, with threaded socket, countersunk or cylinder bore or external thread.

LARGE POT MAGNET WITH BOREHOLE Ø 75 X 17.8 MM

POWERFUL CUP MAGNET WITH BOREHOLE Ø 70 X 16.9 MM

NdFeB Hole Pot Magnets are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mild steel surfaces). The actual pull force achieved is dependent on the surface that is being clamped onto (material type, thickness, flatness, friction levels, etc), its quality (e.g. rust free), its size (thickness plus total surface area), etc.

We offer Pot Magnets in a silver (chrome, zinc or nickel) finish, a white paint finish, a red paint finish, black rubber coated finish and ferritic stainless steel finish, etc.
