Material: Neodymium (NdFeB ) and Steel
Part No.: HS-NO-28
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Flat / without bore
Pot Magnet Size:
Pot Total Diameter (D): 28 mm
Pot Total Height (H): 6.4 mm
Tolerance: ±0.1 mm
Weight: 31 g
Holding Force: 26 kg
Maximum Operation Temperature: 80 °C
Delivery Time: 7-15 days

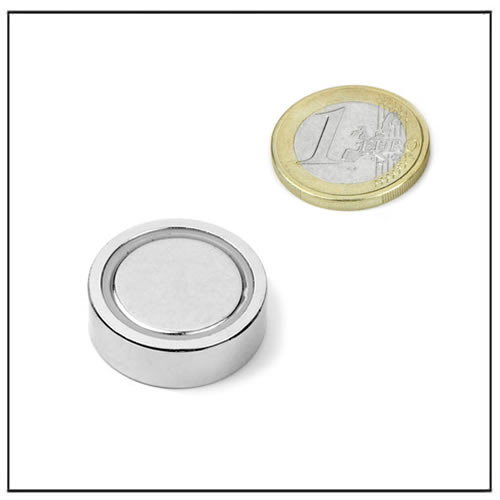

Glue-in Neodymium Pot Magnet Ø 28 X 6.4 mm
Product Description
Glue-in Neodymium Pot Magnet Ø 28 X 6.4 mm, Glue-in NdFeB Pot Magnets, Round Flat Pot Magnet, Round Base Cup Magnet, Ø 28mm Glue-in Pot Magnet
Glue-in Neodymium Pot Magnet – We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.
Pot Magnets (Mounting Magnets) are often used as tools for various activities in workshops and in industry. They can be used for holding workpieces whilst welding, cutting, milling or drilling etc. Because of the lack of moving parts and the robust construction of pot magnets, the life is unlimited and no maintenance is required. Just keeping the pole surface clean guarantee reliable operation and a long life.
Part No. | Dimension (mm) | Weight | Holding Force | |
D | H | (g) | (Kg) | |
HS-NO6 | 6 | 4.7 | 2 | 0.5 |
HS-NO8 | 8 | 4.7 | 3 | 1 |
HS-NO10 | 10 | 5 | 4 | 1.5 |
HS-NO12 | 12 | 5 | 5 | 2 |
HS-NO14 | 14 | 4.5 | 7 | 5 |
HS-NO16 | 16 | 5.2 | 9 | 8 |
HS-NO16-1 | 16 | 5.3 | 9 | 8 |
HS-NO18 | 18 | 6 | 12 | 10 |
HS-NO20 | 20 | 7.2 | 16 | 12 |
HS-NO20-1 | 20.2 | 6 | 15 | 12 |
HS-NO22 | 22 | 6.9 | 20 | 18 |
HS-NO25 | 25 | 7.7 | 26 | 22 |
HS-NO25-1 | 25 | 6.9 | 27 | 22 |
HS-NO28 | 28 | 6.4 | 31 | 26 |
HS-NO30 | 30 | 6.4 | 35 | 29 |
HS-NO32 | 32 | 7.8 | 43 | 34 |
HS-NO32-1 | 32 | 6.8 | 43 | 34 |
HS-NO34 | 34 | 7.3 | 50 | 37 |
HS-NO36 | 36 | 7.6 | 54 | 41 |
HS-NO36-1 | 36 | 6.9 | 55 | 41 |
HS-NO38 | 38 | 7.4 | 65 | 46 |
HS-NO40 | 40 | 7.9 | 75 | 51 |
HS-NO42 | 42 | 8.8 | 83 | 68 |
HS-NO42-1 | 42 | 7.9 | 83 | 68 |
HS-NO45 | 45 | 8.7 | 103 | 75 |
HS-NO48 | 48 | 10.8 | 130 | 81 |
HS-NO48-1 | 48 | 9.6 | 126 | 81 |
HS-NO50 | 50 | 10.7 | 151 | 91 |
HS-NO55 | 55 | 12 | 209 | 102 |
HS-NO60 | 60 | 15 | 256 | 120 |
HS-NO60-1 | 60 | 13.9 | 282 | 120 |
HS-NO65 | 65 | 14.9 | 362 | 137 |
HS-NO70 | 70 | 16.9 | 467 | 153 |
HS-NO75 | 75 | 17.8 | 510 | 178 |
HS-NO75-1 | 75 | 17.9 | 564 | 178 |
HS-NO80 | 80 | 19 | 681 | 200 |
Their application range includes metalworking plants and/or mechanical engineering plants, in combination with various preparations, tools and devices.
