Product Description

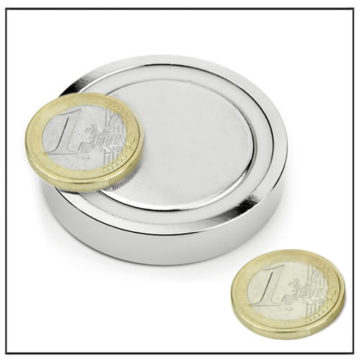

Flat Strong Holding Magnet Ø 48 X 9.6 mm, Neodymium Iron Boron Pot Magnets, Neodymium Round Base Magnet, Flat Holding Magnet, Magnetic Holders

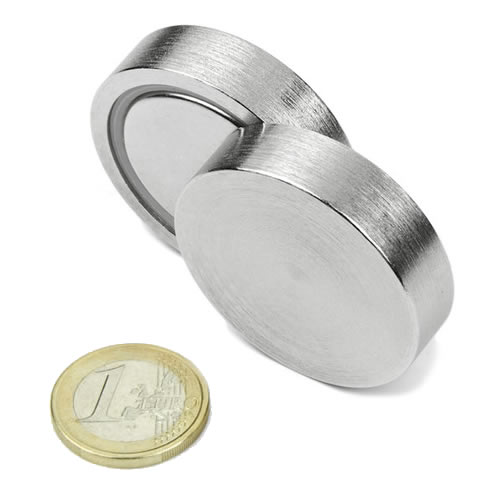

Strong Holding Magnet NdFeB Ø 48 X 9.6 mm by HSMAG:

Rare Earth holding pot magnets (Neodymium) are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover, they are single sided magnets which provide an easy, non-destructive solution for attaching and holding objects.
Our Neodymium pot magnets are offered in a variety of dimensions, sizes and shapes, with countersunk holes or round holes, male or female thread or with a threaded hook.

Material: Housing steel and Magnetic core sintered neodymium disc magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets without threaded bush. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=48 version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

Rare Earth holding pots properties:
* Produced by the powder metallurgical method * Chemical composition of Nd2Fe14B * Very brittle and hard * Poorest corrosion resistance of all commercial magnetic material * Excellent cost to performance ratio * Reasonable temperature stability * Not suitable for application which exposed to high temperatures * High resistance to magnetic demagnetization.
