Material: Ferrite (Ceramic) and Steel
Part No.: HS-CO-25
Plating / Coating: Nickel or Zinc (Ni / Zn)
Shape: Pot with Countersunk Hole
Pot Magnet Size:
Pot Total Diameter (D): 25 mm
Pot Total Height (H): 7 mm
Tolerance: ±0.1 mm
Holding Force: 3.6 kg
Weight: 26 g
Maximum Operation Temperature: 200 °C
Delivery Time: 7-15 days

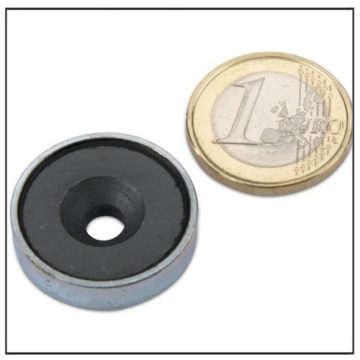

Ferrite Pot Magnets Countersunk Hole Ø 25 x 7 mm
Product Description
Ferrite Pot Magnets Countersunk Hole Ø 25 x 7 mm, Hard Sintered Ceramic Cup Magnets, Round Base Mounting Magnets, Countersunk Ferrite Shallow Magnets in Steelpot China Factory
Ferrite Pot Magnets Countersunk Hole Ø 25 x 7 mm Part No.HS-CO-25 by HSMAG Features :
Material: Housing steel and Magnetic core hard sintered ferrite disc permanent magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=25 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 200°C.
Ceramic & Ferrite magnets in steelpot, perfect to glue.
Our strong ferrite magnets could be even stronger! In this category you find our neodymium pot magnets. The core is a strong ferrite countersunk magnet built in a steel pot. Not only will the steel pot keep the magnet safe from damages but also the magnetic force is higher! Because of the steel there is only one side that can be attached. The optimal surfaces are steel and iron.
Round Bases – Steel design with ceramic magnets for positioning or holding signs, fixtures and decorations. Chrome plated. Round Bases can be also painted in three different colours: black lacquer, yellow & white – special order only. If you need assistance with your requirements, please contact us.
HSMAG has a wide range of magnetic pots:
Ceramic magnetic pots, Alnico magnetic pots, Samarium cobalt magnetic pots, Neoflux magnetic pots, Stainless steel magnetic pots, Plated magnetic pots, etc.
Pot magnets are strong magnets which can produce a magnetic field on its exclusive surface. These magnets are known for their strength and durability and are available in different sizes and shapes.
| Part No. | Dimension (mm) | Weight | Holding Force | |
| D | H | (g) | (Kg) | |
| HS-CO-16 | 16 | 4.5 | 9 | 1.8 |
| HS-CO-20 | 20 | 6 | 16 | 2.7 |
| HS-CO-25 | 25 | 7 | 26 | 3.6 |
| HS-CO-32 | 32 | 7 | 34 | 7.2 |
| HS-CO-40 | 40 | 8 | 75 | 9 |
| HS-CO-50 | 50 | 10 | 151 | 18 |
| HS-CO-63 | 63 | 14 | 356 | 29 |
Holding or pot magnets are used in almost all branches of industry as handling aids for holding, clamping and fixing of tools.
