Material: Ferrite (Ceramic) and Steel
Part No.: HS-CH-42
Plating / Coating: Nickel or Zinc (Ni / Zn)
Shape: Pot with Cylindrical Hole (Borehole)
Pot Magnet Size:
Pot Diameter (D): 42 mm
Pot Height (H): 8.5 mm
Borehole (d1): 6 mm
Borehole (d2): 10,5 mm
Depth (t): 6 mm
Tolerance: +/-2% mm
Maximum Operation Temperature: 200 °C
Delivery Time: 7-15 days

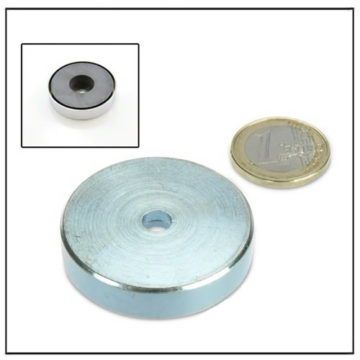

Ferrite Holding Pot Magnet with Borehole Ø 42 x 8.5 mm
Product Description
Ferrite Holding Pot Magnet with Borehole Ø 42 x 8.5 mm, Powerful Round Base Ceramic Pot Magnet with Cylindrical Hole, Sintered Hard Ferrite Through Hole Cup Magnets China Factory
Ferrite Holding Pot Magnet with Borehole Ø 42 x 8.5 mm Part No.HS-CH-42 by HSMAG Features :
Material: Housing steel and Magnetic core hard sintered ferrite disc permanent magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=42 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 200°C.
Strong Ferrite Pot Magnets(magnetic bases) with inner thread holes! Made from the strong ceramic magnets, punching mild steel housing and plastic spacer that all are assemble to be a set of pot magnets and then they are magnetized to be magnetic before shipment, these pot magnets offer substantially more holding and gripping power than ferrite pot magnets.
This kind of configuration and design will keep the magnetic flux more concentrated and the products more powerful. These pot magnets are perfect for use in tooling and fixturing and holding field. Contact Us Now
Please if the size you need is not listed below and we will produce the products according to your requirement without a problem.
Pot magnet, is widely used as tools for various activities in workshops and developed for the current industrial needs, such as Positioning jigs, Work holding fixtures, Catches and latches, Insert into jigs and fixtures for holding, etc.
The Ferrite Pot Magnets are usually used in these fields:
Hanging signs and lights
Fastening antennas
Holding tarps
Making retrieval tools
Holding through non-ferrous materials
Use for fastening or holding steel doors
Insertion into molds
Insertion into fixtures
Incorporation into precision finished products
Through Hole Ferrite Pot Magnets
Cylindrical Borehole Ceramic Pot Magnet
| Part No. | Dimension (mm) | |
| D | H | |
| HS-CF-10 | 10 | 4.5 |
| HS-CF-13 | 13 | 4 |
| HS-CF-16 | 16 | 5 |
| HS-CF-20 | 20 | 5.2 |
| HS-CF-25 | 25 | 5.3 |
| HS-CF-30 | 30 | 6 |
| HS-CF-36 | 36 | 8 |
| HS-CF-42 | 42 | 8.5 |
| HS-CF-50 | 50 | 10 |
| HS-CF-60 | 60 | 12 |
| HS-CF-65 | 65 | 14 |
| HS-CF-70 | 70 | 13 |
| HS-CF-75 | 75 | 13 |
| HS-CF-80 | 80 | 15 |
| HS-CF-90 | 90 | 20 |
| HS-CF-100 | 100 | 22 |
Holding or pot magnets are used in almost all branches of industry as handling aids for holding, clamping and fixing of tools
