Product Description

External Threaded Pot NdFeB Magnet Ø22 mm, Male Stud Pot Magnet, Male Threaded Rare Earth Pot Base Magnet, Sintered NdFeB Threaded Magnet, Stud Pot Magnets China Manufactory

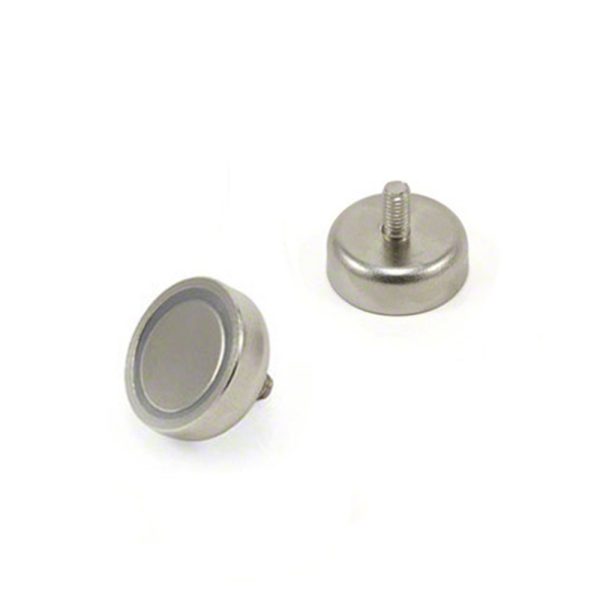

External Threaded Pot NdFeB Magnet Ø22 mm X 16.2 mm Part No.HS-NC22 by HSMAG Features :

Material: Housing steel and Magnetic core sintered neodymium magnet with external thread .
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets with External Threaded Stud. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=22 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

HSMAG Pot Magnet not only have a potent attraction while in direct contact with the work piece, but also have the excellent field projection capabilities.
NEODYMIUM with higher operating Temperatures and Intrinsic Coercive Forces are available in these Pot Magnets. Samarium Cobalt and Stainless shells and shields are also manufactured. The all Stainless Pot Magnets, for both Alnico and Neodymium, are a Level I or II food grade unit.

Round Magnets | Base Magnets
Base Magnets are round magnets fitted inside a steel housing. They often are magnets with a countersunk hole in the center. This hole can be manufactured in many different sizes. This type of magnet is also referred to as a pot magnet. Base magnets are shallow pot magnets encased with a metal housing.

Wholesale Base Magnets
HSMAG specializes in wholesale magnets and magnetic products. We provide competitive pricing for base magnets made to your specifications.

Neodymium Pot Magnets
We manufacture ndfeb pot magnets for wholesale orders. We produce both large and small orders. We specialize in magnets. HSMAG we can fill your order quickly and easily.

Application of Magnetic Pot
Pot magnets are widely used in industrial and living areas, such as workshops, factories, warehouses, offices and so on.
