Material: Neodymium (NdFeB ) and Steel
Part No.: HS-NA12
Plating / Coating: Nickel (Ni-Cu-Ni) or Zinc (Zn)
Shape: Ring with Countersunk hole (90° sunken hole)
Pot Magnet Size:
Pot Total Diameter (D): 12 mm
Pot Bottom Diameter (D1): 3.5 mm
Pot Countersunk Diameter (D2): 6.5 mm
Pot Total Height (H): 5 mm
Tolerance: ±0.1 mm
Weight: 4 g
Holding Force: 1.5 kg
Maximum Operation Temperature: 80 °C
Delivery Time: 7-15 days

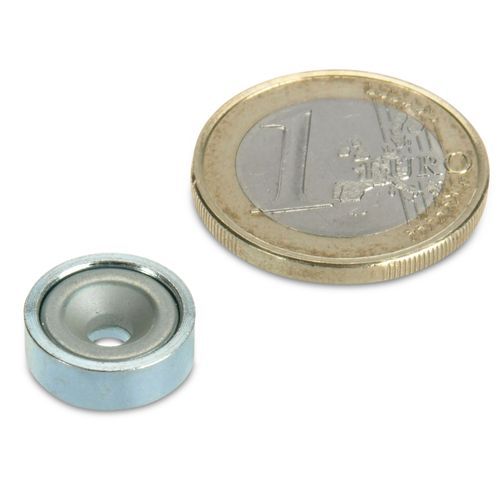

Countersunk Small Pot Magnet Ø 12 X 5 mm
Product Description
Countersunk Small Pot Magnet Ø 12 X 5 mm, Neodymium Countersink Pot Magnet, Powerful Small Pot Magnets, NdFeB Countersunk Mounting Magnet, NdFeB Magnet with Countersunk Holes
Countersunk Small Pot Magnet Ø 12 X 5 mm HS-NA12 by HSMAG Features :
Material: Housing steel and Magnetic core sintered neodymium coountersink magnet.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow flat pot magnets without threaded bush. These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=12 version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
Uses for our rare earth countersunk pot magnets:
Celebrities build their fame on a seemingly effortless ability to produce outstanding performances. Builders building designer homes keep adding to their reputations with the help of the effortless magic of magnets. With plenty of these 12mmx5mm countersunk pot holding magnets in their tool belts, celebrity builders are building the homes of tomorrow today.
Designer homes are so valued now and so expensive to build that the builders who build these architect designed dream dwellings are approaching celebrity status. Most of these builders are as modest about their claims to fame as these 12mmx5mm countersink holding pot magnets.
However, with the help of magnetism, these builders, like many celebrities, are delivering a product that is as modern as tomorrow. These holding pot magnets, able to receive a threaded attachment like a hook or an eyelet, are reached for by skilled tradespeople for a wide variety of applications throughout the designer build.
Part No. | Dimension (mm) | Weight | Holding Force | |||
D | D1 | D2 | H | (g) | (Kg) | |
HS-NA10 | 10 | 3.5 | 6.5 | 5 | 3 | 1 |
HS-NA12 | 12 | 3.5 | 6.5 | 5 | 4 | 1.5 |
HS-NA14 | 14 | 3.5 | 6.5 | 4.5 | 5 | 4 |
HS-NA16 | 16 | 3.5 | 6.5 | 5.2 | 7 | 6 |
HS-NA6-1 | 16 | 3.5 | 6.5 | 5.3 | 8 | 6 |
HS-NA18 | 18 | 4.5 | 8.6 | 6 | 10 | 8 |
HS-NA20 | 20 | 4.5 | 8.6 | 7.2 | 15 | 10 |
HS-NA20-1 | 20 | 4.5 | 8.6 | 6 | 13 | 10 |
HS-NA22 | 22 | 4.5 | 8.6 | 6.9 | 18 | 15 |
HS-NA25 | 25 | 5.5 | 11 | 7.7 | 24 | 22 |
HS-NA25-1 | 25 | 5.5 | 11 | 6.9 | 23 | 22 |
HS-NA28 | 28 | 5.5 | 11 | 6.4 | 28 | 25 |
HS-NA30 | 30 | 5.5 | 11 | 6.4 | 32 | 29 |
HS-NA32 | 32 | 5.5 | 11 | 7.8 | 39 | 32 |
HS-NA32-1 | 32 | 5.5 | 11 | 6.8 | 38 | 32 |
HS-NA34 | 34 | 5.5 | 11 | 7.3 | 45 | 35 |
HS-NA36 | 36 | 6.5 | 12 | 7.6 | 50 | 41 |
HS-NA36-1 | 36 | 6.5 | 12 | 6.9 | 50 | 41 |
HS-NA38 | 38 | 6.5 | 12 | 7.4 | 60 | 47 |
HS-NA40 | 40 | 6.5 | 12 | 7.9 | 69 | 52 |
HS-NA42 | 42 | 6.5 | 12 | 8.8 | 77 | 61 |
HS-NA42-1 | 42 | 6.5 | 12 | 7.9 | 78 | 61 |
HS-NA45 | 45 | 8.5 | 19 | 8.7 | 90 | 70 |
HS-NA48 | 48 | 8.5 | 19 | 10.8 | 120 | 81 |
HS-NA48-1 | 48 | 8.5 | 19 | 9.6 | 113 | 81 |
HS-NA50 | 50 | 8.5 | 19 | 10.7 | 136 | 89 |
HS-NA55 | 55 | 8.5 | 19 | 12 | 192 | 102 |
HS-NA60 | 60 | 8.5 | 19 | 15 | 243 | 115 |
HS-NA60-1 | 60 | 8.5 | 19 | 13.9 | 265 | 115 |
HS-NA65 | 65 | 8.5 | 19 | 14.9 | 338 | 130 |
HS-NA70 | 70 | 10.5 | 21 | 16.9 | 440 | 148 |
HS-NA75 | 75 | 10.5 | 21 | 17.8 | 480 | 163 |
HS-NA75-1 | 75 | 10.5 | 21 | 17.9 | 537 | 163 |
HS-NA80 | 80 | 10.5 | 21 | 19 | 655 | 192 |
Pot Magnets (Mounting Magnets) are often used as tools for various activities in workshops and in industry. They can be used for holding workpieces whilst welding, cutting, milling or drilling etc.
