Material: Ferrite (Ceramic) and Steel
Part No.: FTB-100
Plating / Coating: Nickel or Zinc (Ni / Zn)
Shape: with External Thread
Pot Magnet Size:
D 100 mm
h1 22 mm
d6 22 mm
Thread m M12
Weight 956 g
Pull Force 91.2 kg
Hight H 43 mm
Tolerance: +/-2% mm
Maximum Operation Temperature: 200 °C
Delivery Time: 7-15 days

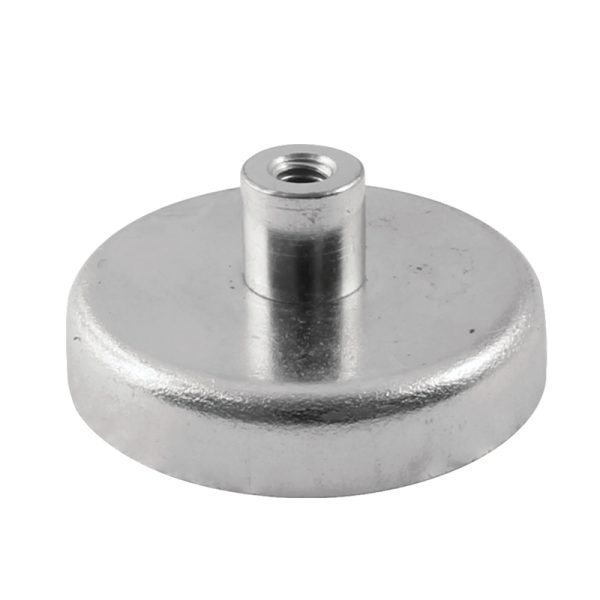

Big Threaded Bushing Ferrite Holding Magnet Ø 100mm
Product Description

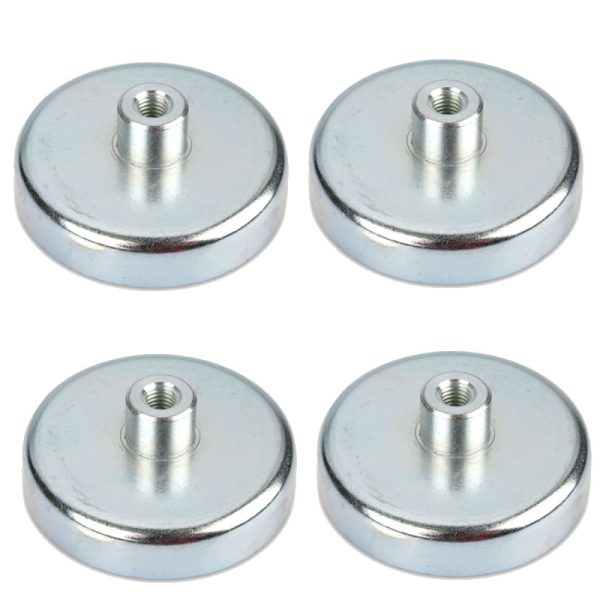

Big Threaded Bushing Ferrite Holding Magnet Ø 100mm, Magnetic Pots, Hard Sintered Ferrite Mounting Pot Magnets with Internal Threaded Bushing, Threaded Bushing Ceramic Cup Magnet China Factory
Big Threaded Bushing Ferrite Holding Magnet Ø 100mm x 22mm Part No.HS-FTB-100 by HSMAG Features :
Material: Housing steel and Magnetic core hard sintered ferrite permanent magnet with internal threaded busing mounting.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=100 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 200°C.
Item: Pot Magnet/ Magnet Pot / Permanent Pot Magnet/ ferrite Pot Magnet
Place of Origin: Zhejiang China (Mainland) Type: Permanent
Composite: Magnet+metal Shape: According to clients’ requirements
Material: ferrite magnet Size: Customized
Packaging:
1. Standard Air or Sea Way package
2. Customized package is available
Pot magnets are made from different kinds permanent magnets and metal pot. Special magnetic circuit make it have super strong magnetic force, many times stronger than the single strong magnet.
Applications of pot magnets
Metal construction
Booth and store construction
Plant construction
School, training & studies
Hobby & leisure
we are ISO9001: 2000 quality approval enterprise, committed in supplying inorganic/organic chemicals, pigments and dyestuffs in China. It lies in tianjin of China. With advantages of owning our large scale capital-owned factories, we attribute our success to our enduring efforts to supply quality and cost-effective chemicals to our customers. Special features of pot magnets
To protect the magnet and ensure maximum adhesive force, the magnet must not protrude from the pot. In practice the magnet is lightly recessed in the pot, which varies from magnet to magnet, but the adhesive force indicated on the web shop is guaranteed.
Part No. | Dimension (mm) | Thread M | Weight | Holding Force | |||
D | h1 | H | d6 | (g) | (Kg) | ||
HS-FTB-10 | 10 | 4.5 | 11.5 | 6 | M3 | 3 | 0.4 |
HS-FTB-13 | 13 | 4.5 | 11.5 | 6 | M3 | 4 | 1 |
HS-FTB-16 | 16 | 4.5 | 11.5 | 6 | M3 | 6 | 1.8 |
HS-FTB-20 | 20 | 6 | 13 | 6 | M3 | 11 | 3.1 |
HS-FTB-25 | 25 | 7 | 15 | 8 | M4 | 20 | 4 |
HS-FTB-32 | 32 | 7 | 15 | 8 | M4 | 31 | 8.1 |
HS-FTB-40 | 40 | 8 | 18 | 10 | M5 | 59 | 12.8 |
HS-FTB-50 | 50 | 10 | 22 | 12 | M6 | 111 | 22.4 |
HS-FTB-63 | 63 | 14 | 30 | 15 | M8 | 245 | 35.7 |
HS-FTB-80 | 80 | 18 | 34 | 16 | M10 | 499 | 61.1 |
HS-FTB-100 | 100 | 22 | 43 | 22 | M12 | 956 | 91.2 |
HS-FTB-125 | 125 | 28 | 50 | 25 | M14 | 172 | 132 |
High quality pot/cup magnet assemblies made with super strong rare earth neodymium magnets and ceramic magnets for Home or Industrial uses.
