Alnico Shallow Pot Magnets
Dimensions (mm) Screw Magnetic Force
Item No. A B C (kg)
HSSPM-02 28.5 8.5 5.2 M4 5
AlNiCo Mounting Pot Magnet
Alnico Shallow Pot Magnets
AlNiCo Mounting Pot Magnet, Shallow Pot Alnico Magnet, Alnico Round Base Magnetic System, Pot Magnet Alnico Assemblies, Alnico Magnets Shallow Pot with Countersink China Supplier
AlNiCo Mounting Pot Magnet Part No. HSSPM-02 by HSMAG Features :
This Alnico Shallow Pot Magnet has a diameter of 28.5mm and a height of 8.75mm.
450° maximum operating temperature
Alnico 5 magnet material and mild steel pot
Good corrosion resistance
Mounting Pot Magnet / Shallow Pot Magnet
The countersunk mounting pot magnet is also known as a shallow pot magnet (a term often used with ferrite material as the inner magnet but other magnet materials are used).

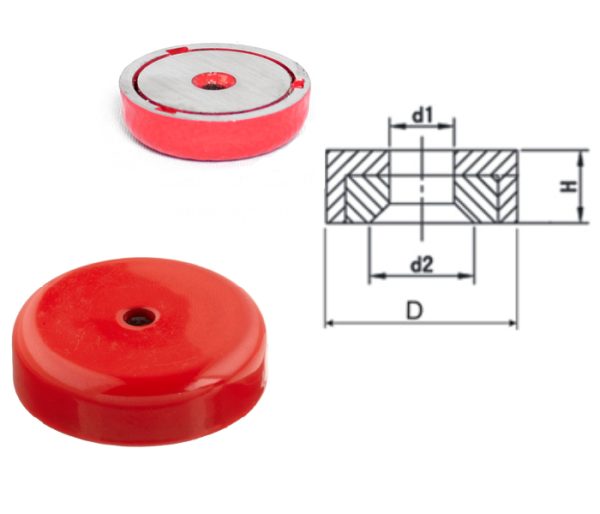

The countersunk mounting pot magnet / shallow pot magnet is a ferromagnetic steel cup into which is inserted a countersunk ring magnet. There is a hole all the way through the countersunk mounting pot magnet / shallow pot magnet. This allows a screw head to be inserted into the countersunk mounting pot magnet / shallow pot magnet to screw the countersunk mounting pot magnet / shallow pot magnet to any material of your choice to give a good mechanical hold. Take care not to over tighten the screw to prevent breaking the magnet material (which is brittle in nature).
The countersunk mounting pot magnet / shallow pot magnet is a very popular pot magnet, ideal for clamping and holding applications. The countersunk mounting pot magnet / shallow pot magnet is designed to clamp directly onto ferromagnetic surfaces such as mild steel.
Alnico countersunk mounting pot magnets / alnico shallow pot magnets have a maximum operating temperature of up to +450 degrees C and are available in natural (uncoated, unpainted) or painted finishes. In some versions the steel hole of the mild steel cup in threaded.
Alnico pot magnets are engaged throughout construction, manufacturing and electronics devices as joining, fastening and connective tissue in place of first and last chance fixings, like screws, nails, bolts and glues. Alnico pot magnets are safe and secure, permanent and practical, reliable and reusable. Magnetic bond inflicts no damage, no spoiling penalty to materials joined or held in this manner.
Some manufacturers specialise in making sensors like temperature gauges. These companies will design, manufacture, provide machining and perform mechanical assembly to an individual client’s needs. Temperature is a vital measurement for just about anything, especially in relation to machinery and food preparation.
|Part No.||Height (mm)||Hole Size||Screw Head Size||Weight (kg)||Pull Force (kg)||Dia. D (mm)|
Shallow pot magnets manufactured in Alnico are mostly used for jigs & fixtures, holding and gripping applications where there are height restrictions.
