loaf magnets dimension
Part No.: SMEB-350
| Molde No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Force (kg) |
| SMEB-350 | 130 | 29 | 45 | 54 | 35 | 350 |
| SMEB-900 | 250 | 29 | 45 | 54 | 35 | 900 |
Notes: Other special shuttering loaf magnets can be customized according to your requirements.

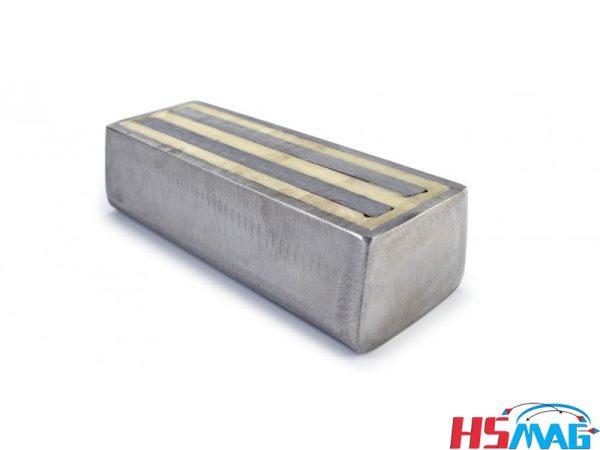

Precast Loaf Magnets Part No. SMEB-350 – The shuttering magnets with the retaining force 350kgs. The simplest design, with an inverse U-shape steel casing to protect the magnets. Without a push-button, the magnets fix directly to a metal surface.
A lower magnetic power makes their use simpler. Their lighter weight and smaller size allow for multiple uses in more complicated or reduced spaces.
This 350kgs precast magnet as loaf shape formed to be applicable for our customers’ U-shuttering system as same as Ratec Euro RTM type. It makes much more adaptive applications available. After magnets asserted into the latch machining steel shell, the spare space was fulfilled with black epoxy material to resist dust. It could keep the inside magnets from damage and much longer durable working life.
Material: Stainless Steel, N50 Neodymium Magnets
Surface Treatment: Steel NatureTreated, Magnet Zn-plated with Black or White Epoxy
Max Working Temperature: 80℃ or as per needs
Loaf Magnets (Metal Blocks) perform the shuttering assembly much more efficiently and are therefore more cost effective. By utilizing additional elements of the modular HSMAG shuttering system, assembly costs can be reduced considerably and the quality of manufacturing improved. You too can profit from these advantages by informing yourself about the complete HSMAG system. We would be happy to send you detailed technical data and information.
The shuttering magnets (Loaf Magnets) with the retaining force. The loaf magnet is formed to be useful for our customers’ U-shuttering system , which make more adaption applications available.
The simplest design, with an inverse U-shape steel casing to protect the magnets.

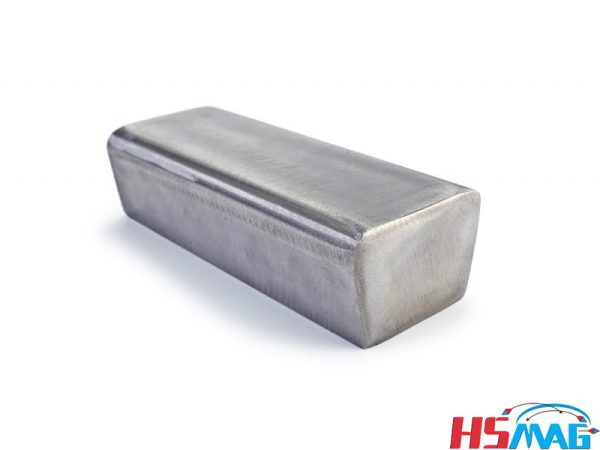

Without a push-button, the magnets fix directly to a metal surface.
A lower magnetic power makes their use simpler. Their lighter weight and smaller size allow for multiple uses in more complicated or reduced spaces.
Loaf Magnets are designed for many applications including steel rails and securing would forms in place. Loaf Magnets are available in standard 350 kg and 900 kg pull force. Optional brackets such as loaf pillar attachment and pillar arm bracket, and custom brackets are also available.
