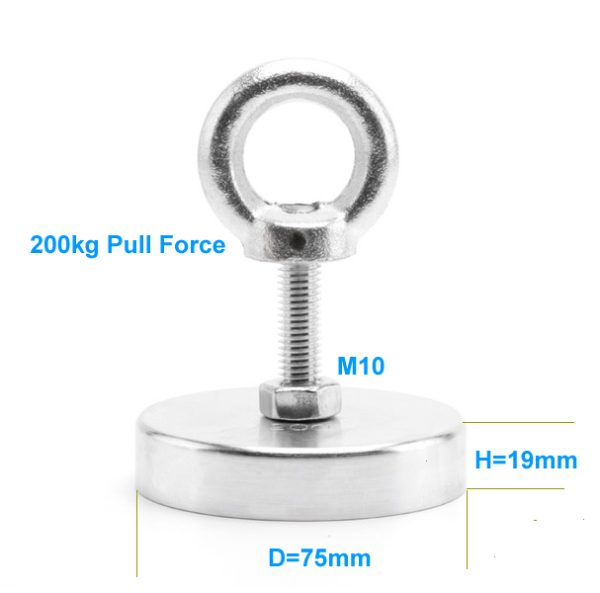

Salvage Magnet- Part No.: HSPNS-F200
Diameter D – 75 mm
Height H – 19 mm
Pull power: 200 kg
Weight: 0.73 kg
The thread of bolts: M10
One-way Eyebolts included.
With galvanized body
Magnet material: NdFeB
Magnet shape: Pot, cylinder, ring
Magnet coating: Nickel (ni-cu-ni)
Max. work temperature: +80℃
200kg Treasure Salvage Underwater Hunting Magnet
Product Description
200kg Treasure Salvage Underwater Hunting Magnet, One-way Eyebolt NdFeB Pot Magnet, Rare Earth Neodymium Pot Magnet, Fishing Magnet, Retrieving Recovery Magnet, Powerful Search Magnet China Supplier
200kg Treasure Salvage Underwater Hunting Magnet Part No. HSPNS-F200 by HSMAG Features :
Material: Zinc or Nickel Coating, Housing steel and Magnetic core sintered neodymium pot magnet with one-side eyebolt.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=75 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
Neodymium Pot magnet with Threaded Stud. Complete with EYEBOLT. Super Strong Treasure Salvage Neodymium Magnet
Search magnets which look like pot magnets, are also made up of neodymium magnets, rubber and steel housings and other components. But their sizes are usually larger than pot magnets, and, the machining method of their steel housing is different from pot magnets’. Treasure Salvage magnets are used for searching ferrite things in river, sea, or other places.
Strong One-way Eyebolt NdFeB Pot Magnet Tip:
1. Retrieving Neodymium Magnets should Keep away from Ironware and some easily magnetized iron products, such as monitors, bank cards, computers, televisions, mobile phones and other
2. Strong magnets should be stored in a dry, heated environment, and need to use of plastic, wood, cardboard, foam to separated and wrapped.
3. Magnets might be interested in water meter ,Electric meter, gas meter and some metering equipment exist some inaccurate affect (Such as : if magnets placed near the meter, the meter will slow down)
We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.
Part No. | Sizes (mm) | Break Force (kg) | Dead Weight (kg) | ||
---|---|---|---|---|---|
D | H | M | |||
HSPNS-F100 | 48 | 11 | 8 | 100 | 0.21 |
HSPNS-F120 | 60 | 15 | 10 | 120 | 0.41 |
HSPNS-F200 | 75 | 19 | 10 | 200 | 0.73 |
HSPNS-F300 | 94 | 20 | 10 | 300 | 1.15 |
HSPNS-F400 | 116 | 20 | 10 | 400 | 1.58 |
HSPNS-F600 | 136 | 25 | 12 | 600 | 2.80 |
For Fishing, Retrieving and Holding
