Part No.: HS-STM-1500
Specification:

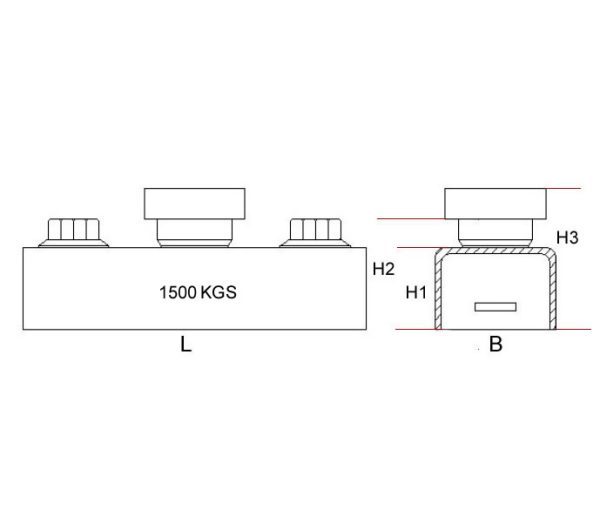

1500 kgs adhesive force:
L= 320mm
B= 90mm
H1= 20mm (Box)
H2= 69mm (Magnet Activated)
H3= 79mm (Magnet Deactivated)
Pull power: 1500 kg
Weight: 6.6 kg
Magnet material: NdFeB and Steel
Magnet coating: Nickel (ni-cu-ni)
Max. work temperature: +80℃

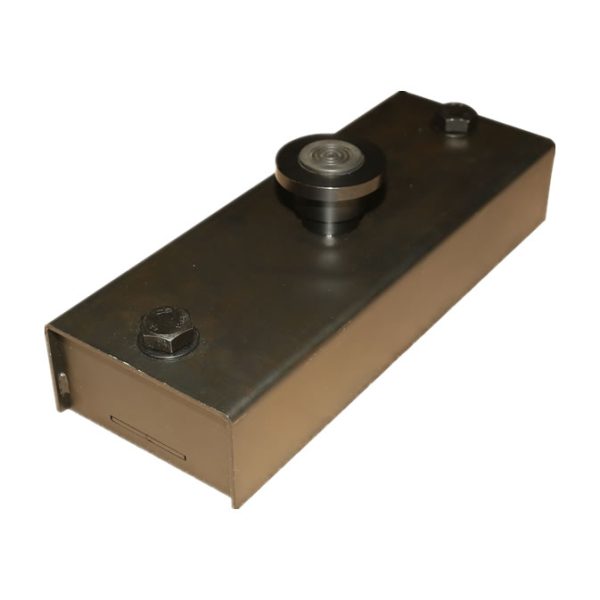

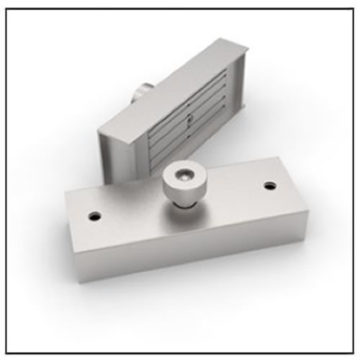

1500KGS Formwork Construction Precast Concrete Magnets
Product Description
1500KGS Formwork Construction Precast Concrete Magnets, Button Magnet, Shuttering Magnet System, Magnetic Shuttering Box for Formwork, Magnetic Boxes, Super Strong Shuttering Magnets China Manufacturer
Formwork Construction Precast Concrete Magnets (cajas magneticas encofrados) – HSMAG brand HS-STM-1500 Shutting magnet box has 1500KGS above adhesive force,you can use the screws to fix the adapter and then we can put it onto the side form tightly.

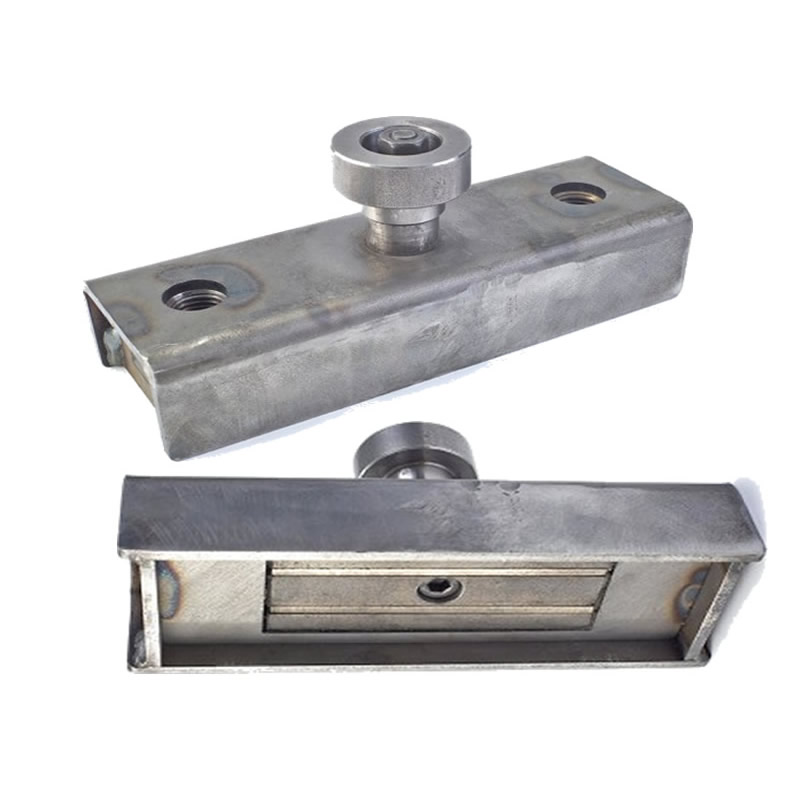

Shuttering Magnet – Precast concrete magnets are a useful and a high tech method of fixing formwork to the casting bed. They are made from rare earth materials, which give higher pull off strengths than other magnet materials. The magnets are designed so that the magnetic portion is layered with steel to spread the magnetic flux and thereby increase the contact area. Housings then surround the magnet to protect against damage, or the steel may be used to bolt a housing to the magnet. Care should be taken when using the magnet to ensure the base is clean and free from debris. This debris causes a loss of strength due to a large air gap forming between the magnet and the bed.
There are many Shuttering Magnet types available.
•A quality magnet system.
•Lower maintenance.
•Stronger adhesive force 1500kg .
•Push button down to attach. Lever button up to release.
•Shuttering magnet 1500kg is a popular choice.
•Multipurpose pressure plates available.
•The magnet is made ready for positioning by the integrated shuttering magnet feet technology which raises the magnet off the casting bed.
•Easy and precise positioning of the magnet.
•Setting of the magnet is by hand pressure.
•Longer life expectancy.
•shuttering magnet is easily removed. Lift the handle and the magnet springs off the casting bed
•Excellent range of accessories for any formwork arrangement
We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Holding & Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.
Item No. | L(mm) | W(mm) | H(mm) | Weight(kg) | Force(kg) |
HS-STM-450 | 170 | 60 | 40 | 1.8 | 450 |
HS-STM-600 | 170 | 60 | 40 | 2.5 | 600 |
HS-STM-650 | 280 | 60 | 40 | 2.3 | 650 |
HS-STM-900 | 280 | 60 | 40 | 3.0 | 900 |
HS-STM-1350 | 320 | 120 | 60 | 6.2 | 1350 |
HS-STM-1500 | 320 | 120 | 60 | 6.6 | 1500 |
HS-STM-1800 | 320 | 120 | 60 | 7.2 | 1800 |
HS-STM-2100 | 320 | 120 | 60 | 7.5 | 2100 |
For precast concrete formworks
