Product Description

1350KGS Precast Concrete Shuttering Magnet, Magnetic Shuttering Box for Formwork, Shuttering Magnet System, Magnetic Boxes, Button Magnet, Super Strong Shuttering Magnets China Manufacturer

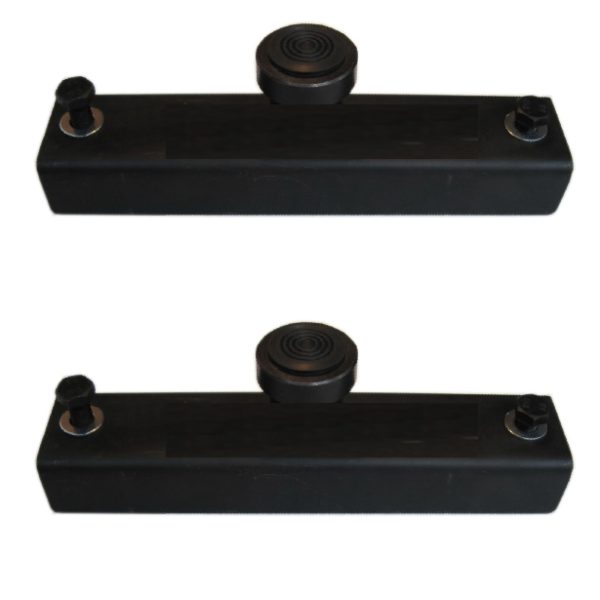

Precast Concrete Shuttering Magnet for Formwork (cajas magneticas encofrados) – HSMAG brand HS-STM-1350 Shutting magnet box has 1350KGS above adhesive force,you can use the screws to fix the adapter and then we can put it onto the side form tightly.
Magnetic Formwork System Shuttering Magnet Feature:
Material: Steel Box with Button , N45 Neodymium Magnets
Surface Treatment: Galvanized or Black Oxidation Treatment
Max Working Temperature: 80℃ or as per needs

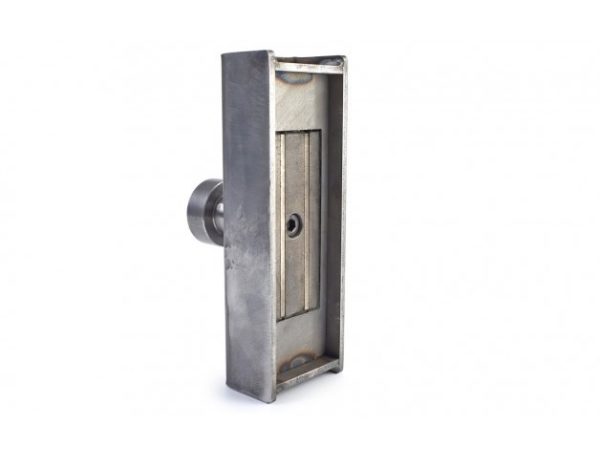

Precast concrete shuttering magnet is a new magnetic assemby which is used to fix the framework in precast industry. The assembly consists of some strong neodymium magnets and steel plates which form to certain designed magnetic circuit. This magnetic circuit provides very much stronger attraction force to any ferrous workpiece. But the magnetic power is shielded and controled by the thick metal box. We develop the push ON/OFF button to open or close the magnetic power outside of the metal box.

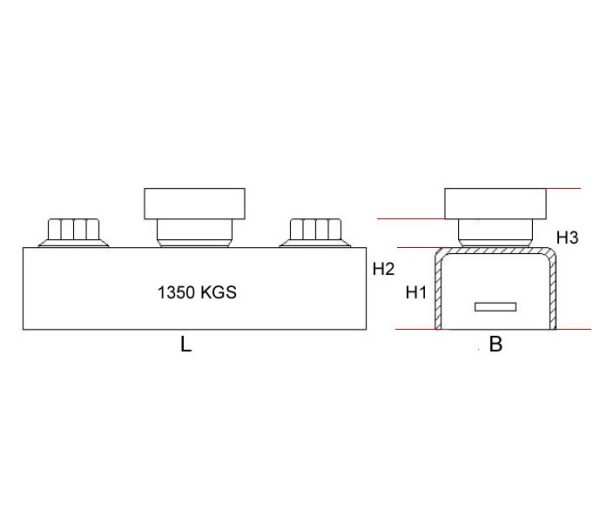

This flexible system saves time, money and manpower. And we just developed the new style with force 1350KGS but the weight of the magnet is only 6.2 kg, and the size is 32cmX9cmX6cm, compare to bigger 1800KGS magnet box size 32cmX12cmX6cm, it is middle size and more economic for your applications.

Advantages of the Magnetic Shuttering Box:
– very leight weight
– simple and safe handling
– simple servicing due to open system
– Magnetic power of 1350 kg, depending on Ground Surface (steel, thickness, temperatur, ruffness)
– changing the formwork just by removing three screws
– materials (Steel and Polyurethane) resistant against concrete
– easy to clean
– The Springs pull the formwork down to the Table and prevent the penetration of concrete (with
120kg per Magnet unit)
– Spring elements help to unlock the magnets when demoulding
– Non-magnetic handling knop enables to stack up the profiles

We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.
