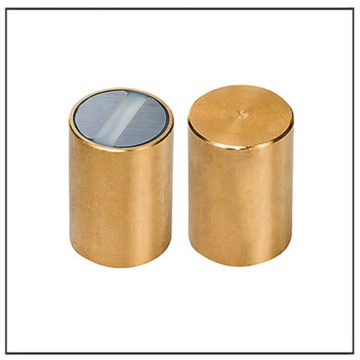

10mm SmCo Magnetic System Deep Pot

Bar magnet SmCo, brass body with fitting tolerance h6.
Magnet ID:              SDPB-1020
Material: Circular rods made of SmCo and brass body
Plating / Coating: brass copper
Shape:         Bar / Rod
Tolerance:           D ±0.1 mm / H ±0.2 mm
Magnetisation Direction:    anisotrop
Maximum Operation Temperature: 280 °C
Delivery Time:           14-35 days
Article number         D mm                H mm         A¹ mm     Distance mm      Force* N       Weight g      Temperature °C
SDPB-1020            10              20(+0.2/-0.2)        8               2.0                  40                12                  200

Measurements:

Product Description

10mm SmCo Magnetic System Deep Pot, SmCo Holding Magnet, Bar Magnet SmCo, brass body with fitting tolerance h6, Cylindrical Deep Pot Magnet, Bi-pole Magnetic Pot SmCo China Factory

10mm SmCo Magnetic System Deep Pot w/ Fitting Tolerance h6 Part No. SDPB-1020 by HSMAG Features :
This SmCo Deep Pot Magnet has a diameter of 10 mm and a height of 20 mm.
Material: Circular rods made of precision-cast SmCo and steel body
Plating: Brass / Copper
Shape: Bar / Rod with Fitting Tolerance h6
Tolerance: D ±0.1 mm / H ±0.2 mm
SmCo magnet material and mild steel pot
Components and materials have to be held – jigs, assembly fixtures and positioning
Strong Magnetism force,comparable to Neodymium(slightly less)
Working temperature up to+200°C

Magnetic pots, also called cup magnets or disc magnets, consist of a magnet encased in metal, with its active magnet face exposed. Magnetic pots may have a hole, thread or screw in the center. The metal encasing on a magnetic pot allows the opposing fields of the magnet to transfer back to its active face. This increases the intensity of the magnet’s pull strength to three to four times that of a standard magnet of the same size.

SmCo Pot Magnets – Samarium cobalt (SmCo) is a type of rare earth magnet that has the ability to operate in high temperatures and has superior resistance to corrosion.

Applications
Samarium Cobalt Pot Magnets The samarium pot magnets have following applications:
•Welding moulds of spot-welding machines
•In very small tools
• In various gripping operations

Samarium cobalt pot magnets are powerful permanent magnets which are encased in a steel pot and are workable under very high temperatures that is 200° C. The magnetic force of these magnets are very high as compared to ceramic magnets due to which they have good resistance against demagnetization. Samarium pot magnets can be fastened that is they can be pressed, glued and screwed.

Bar Magnet SmCo, brass body with fitting tolerance h6

SmCo Mounting Magnets with Fitting Tolerance h6

20mm SmCo Holding Magnet

Smco Pot Magnets APPLICATIONS
Can be used in jigs and fixtures.
Can hold work-pieces during wire cutting.
Can be incorporated in press dies.

magnetic holding, lifting, antenna Mounting, positioning, retrieving and much more.
