Home / Magnetic Assemblies / Treasure Salvage Magnets / 100kg Pull Force Double-Ways Neodymium Fishing Magnet

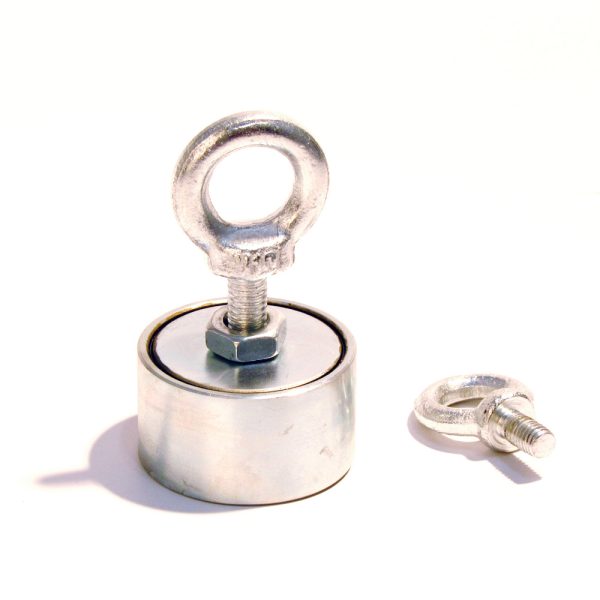

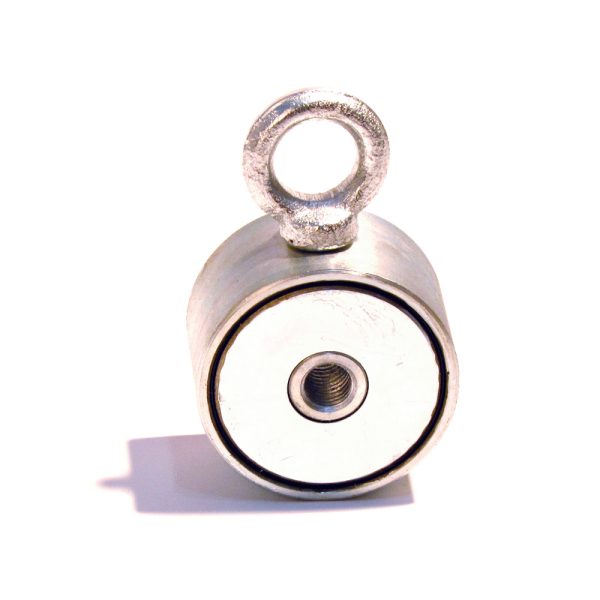

100kg Pull Force Double-Ways Neodymium Fishing Magnet
100kg-Two-sides-Search-Neodymium-Magnets-size-drawingtwo-sides-Search-Neodymium-Permanent-Magnet-with-2-eyeletsTwo-Way-Strong-Search-Magnets-100kg-Pull-ForceTwo-Ways-NdFeB-Search-Magnet-120kgTwo-way-Eyebolt-Pot-Magnet-M8-and-M10-threaded-bolt100kg-pull-force-Treasure-Salvage-Magnet-two-way

100kg Pull Force Double-Ways Neodymium Fishing Magnet

Categories: Magnetic Assemblies, Neodymium Pot Magnets, Treasure Salvage Magnets Tags: cup magnet, eyebolt magnet, eyebolt pot magnets, fishing magnet, holding magnet, hunting magnet, magnetic assembly, magnetic pot, magnetic system, neodymium eyebolt magnet, neodymium magnetic systems, neodymium pot magnet, pot magnet, recovery magnet, retrieving magnet, search magnet, treasure salvage magnets

Send us the magnet inquiry

  • Customized is Available
  • Affordable price
  • Quality guaranteed
  • T/T, L/C, Other payment accepted
  • Bulk discounts for large order
  • Fast shipping, Worldwide delivery
  • Parameters
  • Description
  • All sizes
  • Application

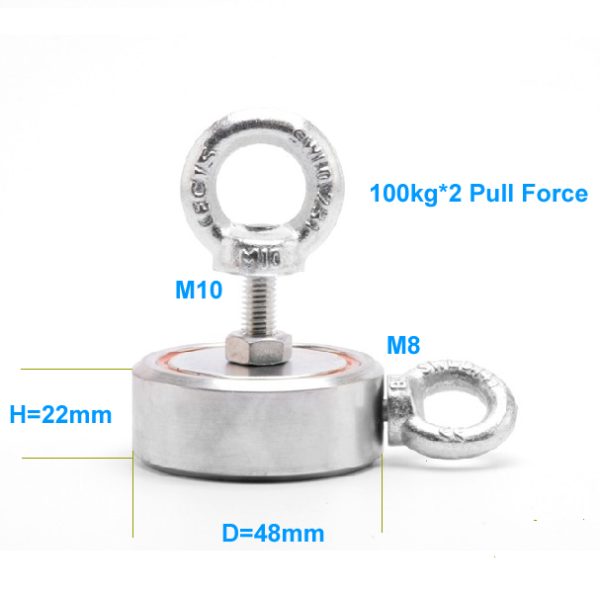

Search Neodymium Magnets – Part No.: HSPNS-F100*2
Diameter D – 48 mm
Height H – 22 mm
Pull power: 100 kg
Weight: 0.34 kg
The 2 threads of bolts: M10 and M10
Two-way Eyebolts included.
With galvanized body
Magnet material: NdFeB
Magnet shape: Pot, cylinder, ring
Magnet coating: Nickel (ni-cu-ni)
Max. work temperature: +80℃

Product Description

100kg Pull Force Double-Ways Neodymium Fishing Magnet, Underwater Retrieving Recovery Magnet, Treasure Salvage Magnet, 2-sides Search Neodymium Permanent Magnet, Search and Recovery Holding Magnet with Eyebolt, Neodymium Pot Magnets China Supplier

100kg Pull Force Double-Ways Neodymium Fishing Magnet Treasure Salvage Magnet Part No. HSPNS-F100*2 by HSMAG Features :

Material: Zinc or Nickel Coating, Housing steel and Magnetic core sintered neodymium pot magnet with two-sides eyebolts.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=48 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.

SEARCHING MAGNETS
Recent technological advances have added to the arsenal fans hobby metal detector original search tool to search for retrieval magnets Of various types. There are several types of search magnets. This is a very powerful permanent magnets and they are considered as equipment for the detection of ferromagnetic objects.the magnets searching for truth.
Lost any KEYS or a Weapon down a drain or overboard on a boat ! great for finding them. Treasure Hunting etc. All you will need is a STRONG rope. Strong Treasure Salvage Permanent Magnets was made of NdFeB with Tings, appearance does not rust, usually placed in room temperature, the maximum operating temperature is 80 ° C , and it never will demagnetization.

Place of application
search for finds of iron at the bottom of rivers and reservoirs
in cellars and caves
in wells and cellars
land in the dumps
under bridges and crossings on the site
land clearing debris from the iron
collecting modern coins from the water (many coin magnets!)
rise drowned valuable items (fishing gear, hunting rifles, etc.)

We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.



Part No.Sizes(mm)Break Force (kg)Dead Weight (kg)
DHM
HSPNS-F100*248228,10100*20.34
HSPNS-F120*260308,10120*20.64
HSPNS-F200*2753210,10200*21.06
HSPNS-F300*2944010,10300*22.05
HSPNS-F400*21164010,10400*23.10
HSPNS-F600*21364012,10600*24.38



For Fishing, Retrieving and Holding
