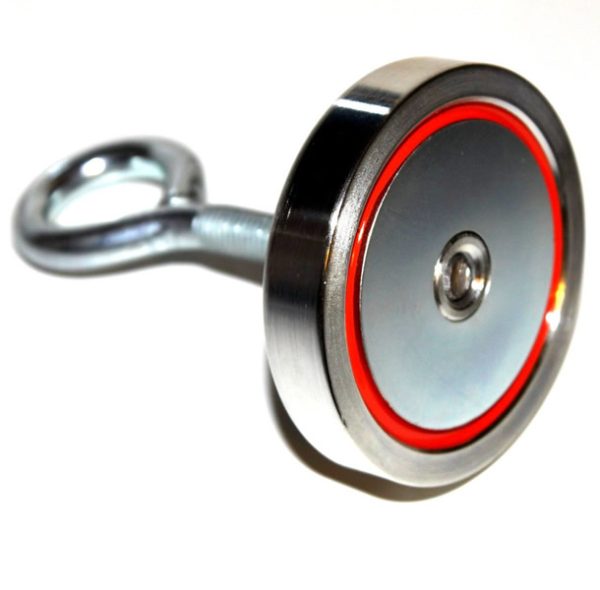

Treasure Salvage Magnet – Part No.: HSPNS-F100

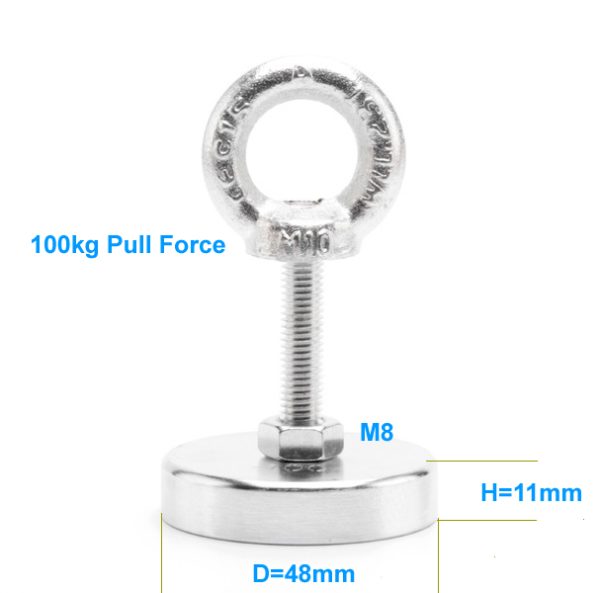

Diameter D – 48 mm
Height H – 11 mm
Pull power: 100 kg
Weight: 0.21 kg
The thread of bolts: M8
One-way Eyebolts included.
With galvanized body
Magnet material: NdFeB
Magnet shape: Pot, cylinder, ring
Magnet coating: Nickel (ni-cu-ni)
Max. work temperature: +80℃

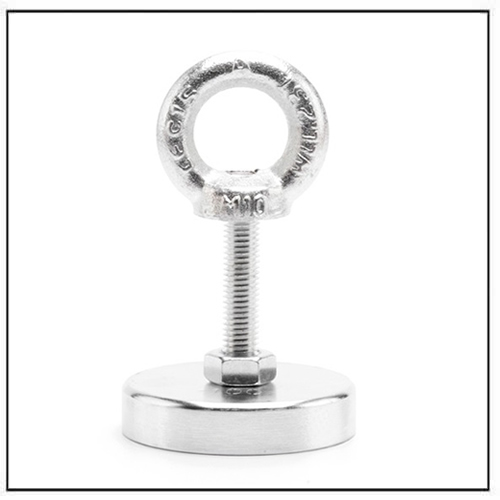

100kg One-Side Treasure Salvage Permanent Magnet
Product Description
100kg One-Side Treasure Salvage Permanent Magnet, Powerful Search Retrieval Magnet, One-way Eyebolt NdFeB Pot Magnet, Rare Earth Neodymium Fishing Magnet, Retrieving Recovery Magnet, Search Magnet China Supplier
100kg One-Side Treasure Salvage Permanent Magnet Part No. HSPNS-F100 by HSMAG Features :
Material: Zinc or Nickel Coating, Housing steel and Magnetic core sintered neodymium pot magnet with one-side eyebolt.
Version: Housing, galvanized. Magnet, Ni coated or Zn coated
Note: Shallow pot magnets, These magnets are pressed or glued into the receiving holes.
Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=48 mm version. They do not impair the attracting function of the magnets in any way.
Temperature range: max. 80°C.
The design of the search magnet:
Search neodymium magnet consists of a metal chiseled body (made of structural steel), which is placed (glued) two-sided magnet. The body and the magnet have a corrosion-resistant coating of zinc (for use in fresh and salt water). In the center of the side of the magnet and the screw holes are made to fit the eye bolt (included). Eye bolt made of carbon steel galvanized. The rare earth magnet Neodymium-Iron-Boron – very strong magnet with a residual magnetic flux density of the material.
The search engine uses the search neodymium permanent magnet to locate and pick up metal objects from the bottom of reservoirs, wells, mines and other depths. Magnets allow lift even very heavy objects. One-Side Search Retrieval Magnet
Search the magnet is neodymium magnet enclosed in a steel housing which reliably protects the magnet from external damage and is threaded to eyebolts. Bolt used for tying a rope and lifting magnet prityanuvshy (by screwing).
We can design and manufacture A Wide Range of Pot Magnets according to clients requirements.
Pot magnets (Mounting Magnets) are made up of magnets (NdFeB, SmCo, AlNiCo or Hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components. Sometimes Pot magnets can meet some special requirements while a single magnet can not do. In the meantime, using pot magnets can save more cost than just using magnets and gain the same purpose.
Part No. | Sizes (mm) | Break Force (kg) | Dead Weight (kg) | ||
---|---|---|---|---|---|
D | H | M | |||
HSPNS-F100 | 48 | 11 | 8 | 100 | 0.21 |
HSPNS-F120 | 60 | 15 | 10 | 120 | 0.41 |
HSPNS-F200 | 75 | 19 | 10 | 200 | 0.73 |
HSPNS-F300 | 94 | 20 | 10 | 300 | 1.15 |
HSPNS-F400 | 116 | 20 | 10 | 400 | 1.58 |
HSPNS-F600 | 136 | 25 | 12 | 600 | 2.80 |

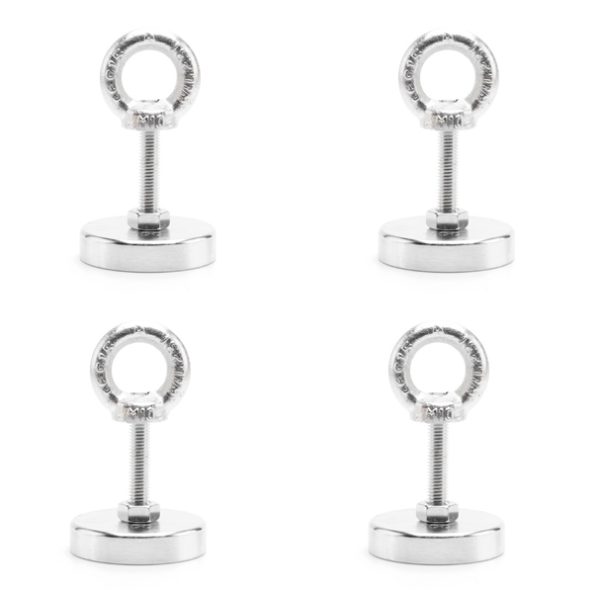

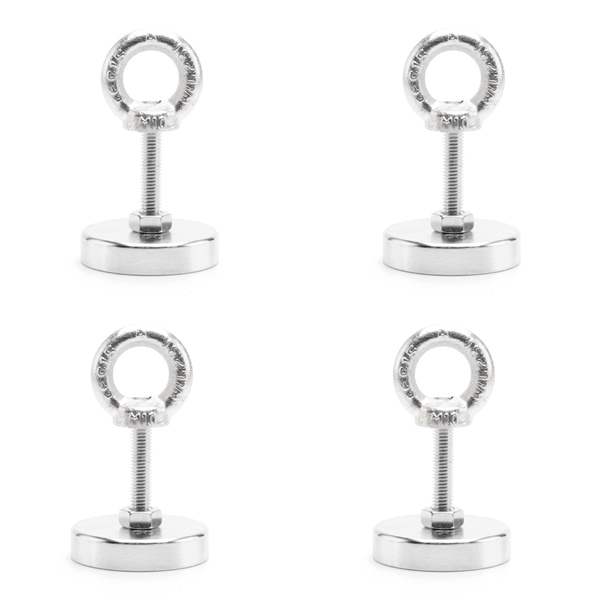

For Fishing, Retrieving and Holding
